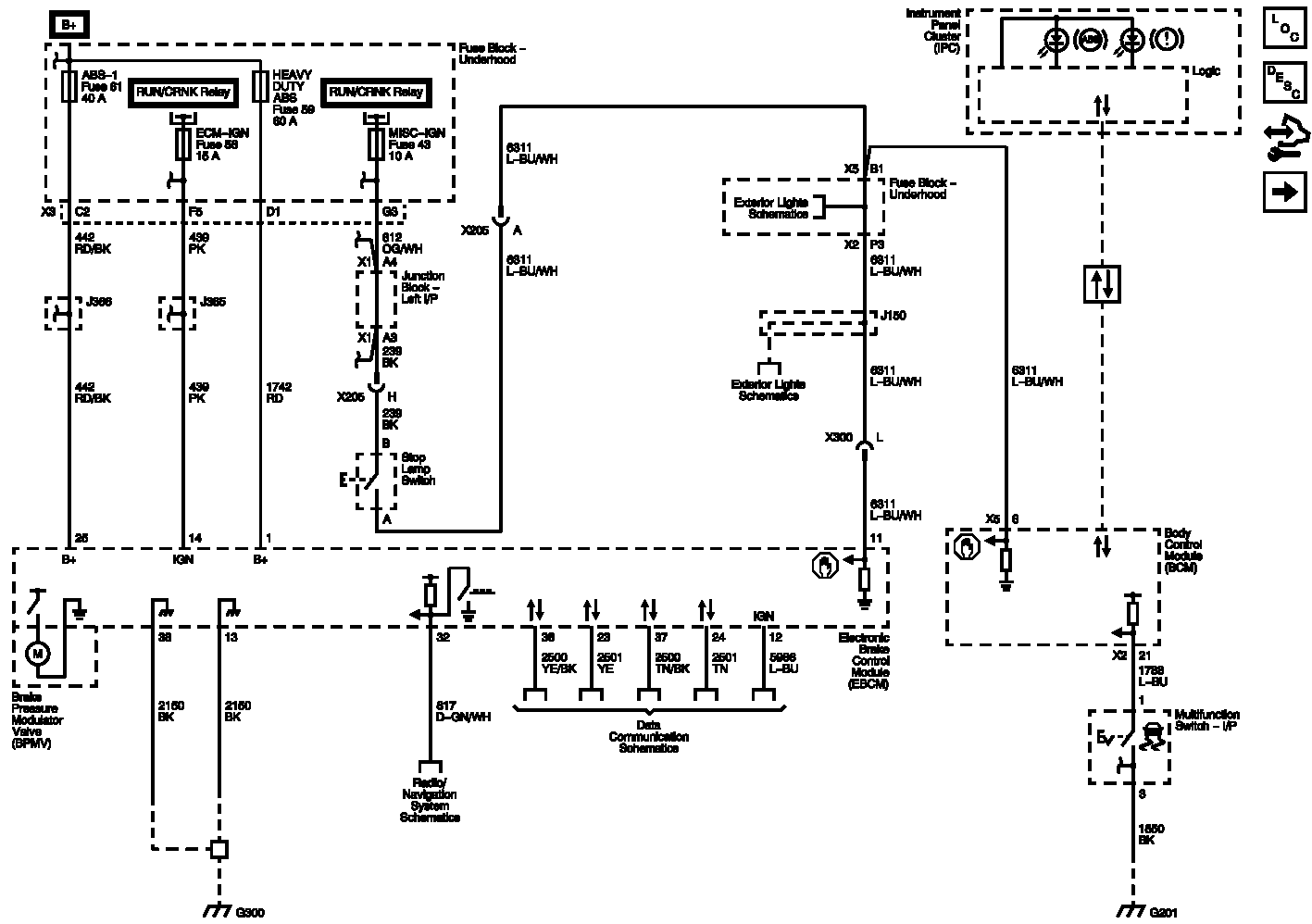

Module Power, Ground, and Serial Data, Pump Motor and Brake Switch Wiring Schematics

WARNING: This page is about a different car, the 2012 GMC Yukon, 2012 Chevrolet Tahoe, and 2012 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
