Junction Block - Left I/P X14 (5W4, AYE or SPO Accessory - Headrest DVD)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

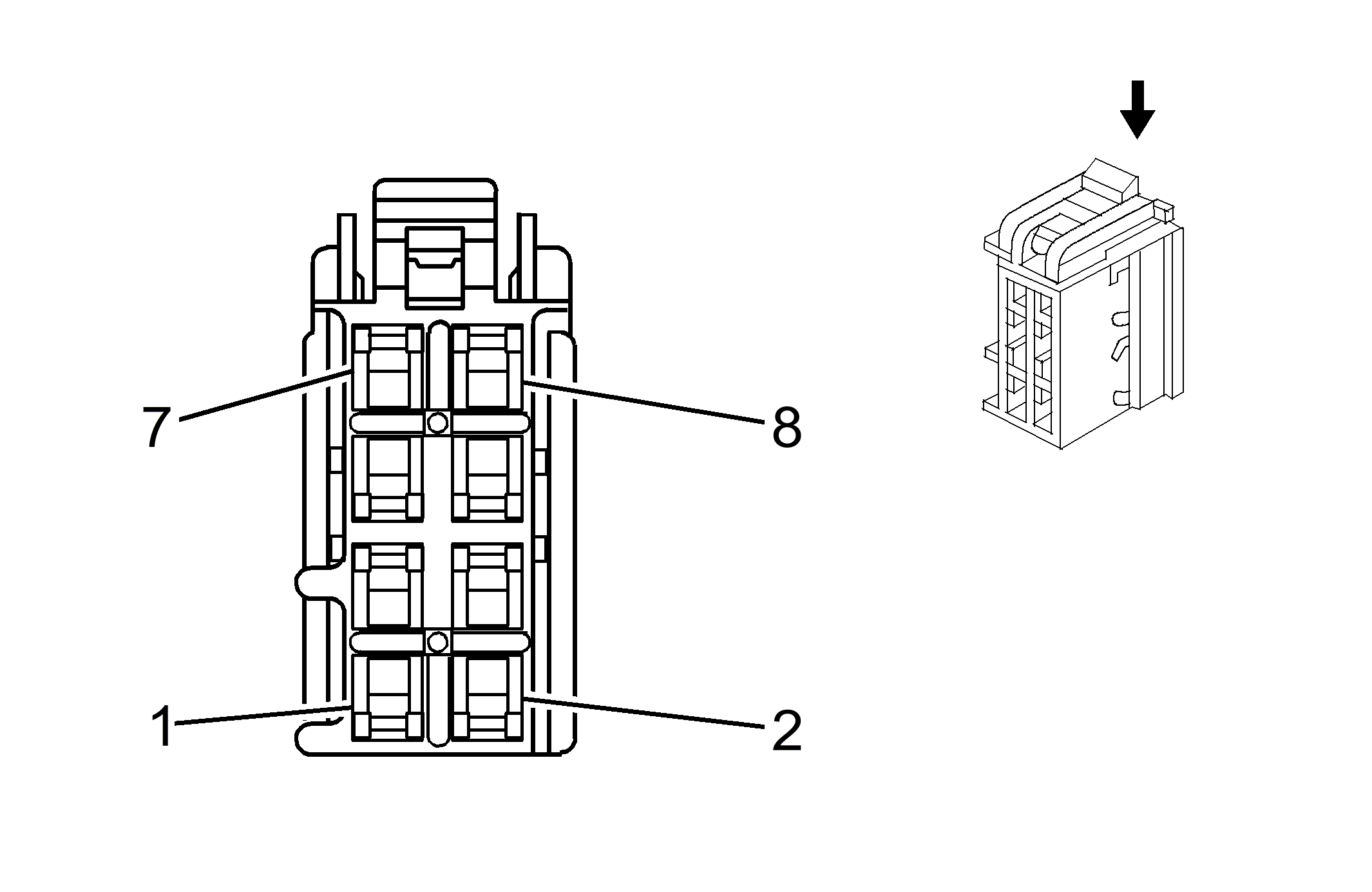

Fig 1: Junction Block - Left I/P X14 Connector End View
GM1665737Courtesy of GENERAL MOTORS COMPANY
Junction Block - Left I/P X14 (5W4, AYE or SPO Accessory - Headrest DVD)

Pin Wire Circuit Function
1 BK 1050 Ground (AYE)
0.5 BK 1050 Ground (5W4)
2 RD 4540 Battery Positive Voltage (AYE)
3-6 - - Not Used
7 RD - Ignition Voltage (SPO Accessory - Headrest DVD)
0.5 PK 739 Ignition Voltage (5W4)
8 YE 43 Accessory Voltage
Connector Part Information
  • Harness Type: Headrest DVD (AYE or SPO Accessory - Headrest DVD)
  • OEM Connector: 13516837
  • Service Connector: 13585326
  • Description: 8-Way F GT 280 Series (BK)

Terminal Part Information
  • Terminated Lead: Service by Connector Assembly - 13585326
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 13525970/4
  • Core/Insulation Crimp: E/A
