Forward Lamp Harness Routing (Z75)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

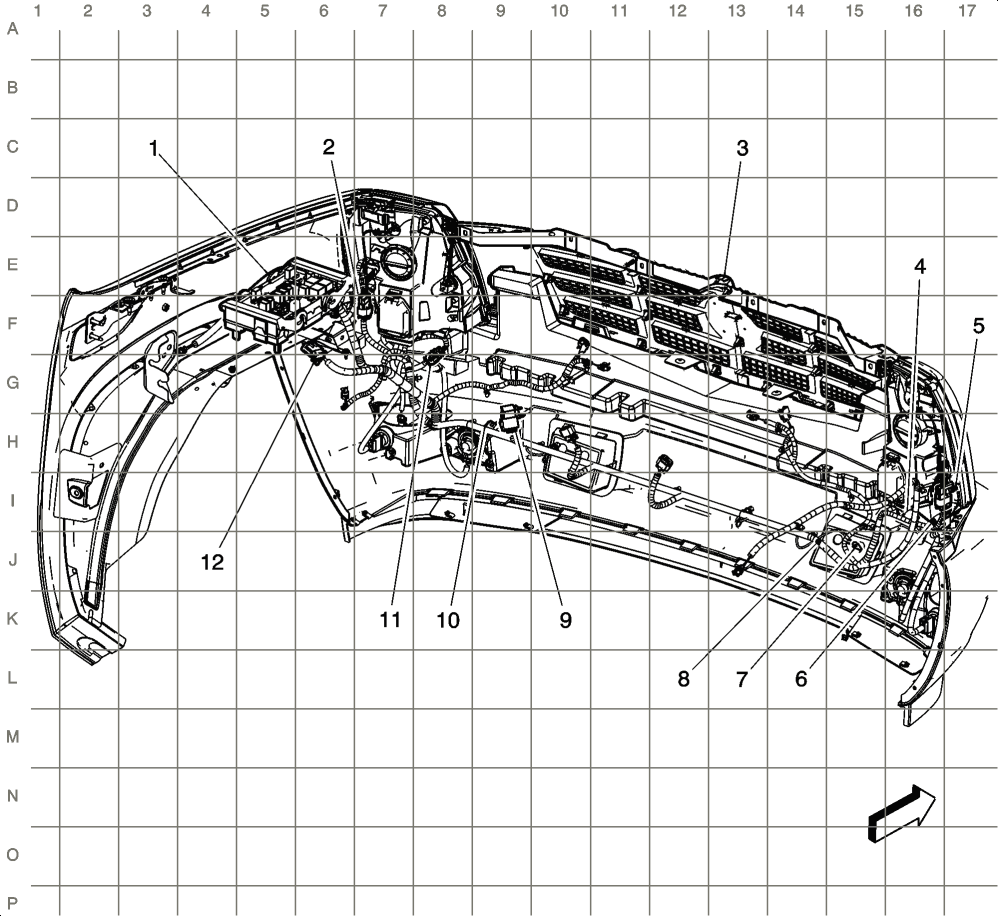

Fig 1: Forward Lamp Harness Routing (Z75)
GM2216414Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Fuse Block- Underhood
2 X100 (without EXP)/X140 (EXP)
3 Grille
4 X104 (T96)
5 X106 (without EXP)/X141 (EXP)
6 J103
7 G101
8 J101
9 Horn Relay (VD1)
10 J100
11 X101 (T96)
12 X103
