Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

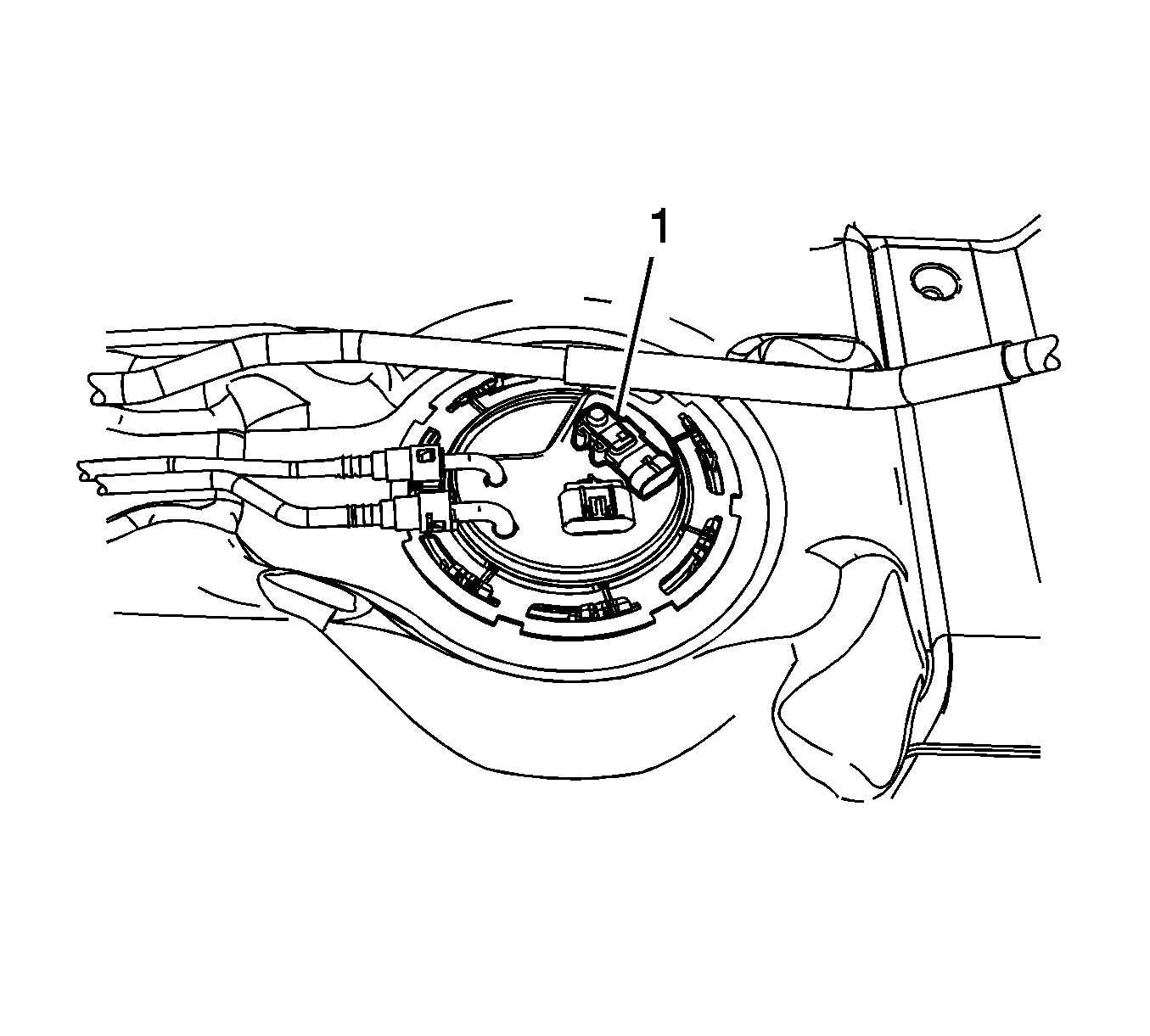

- Install the fuel tank pressure sensor (1).
- Position the EVAP line and connect the EVAP line quick connect fitting to the vent valve. Refer to Plastic Collar Quick Connect Fitting Service .
- Install the fuel tank. Refer to Fuel Tank Replacement (1500 LWB - 117.3L (31 gal) Tank + E85) , Fuel Tank Replacement (1500 SWB - 98.4L (26 gal) Tank) , Fuel Tank Replacement (1500 SWB - 98.4L (26 gal) Tank + E85) , Fuel Tank Replacement (2500 LWB - 4.35L (11.5 gal) Tank Rear) , Fuel Tank Replacement (1500 LWB - 117.3L (31 gal) Tank) , Fuel Tank Replacement (2500 LWB - 98.4L (26 gal) Tank Front) .
