Installation Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The inlet and outlet hoses must not be twisted during installation. Do not bend or distort the inlet or outlet hoses to make installation easier. Failure to follow these procedures could result in component damage.
  1. Position the brake booster outlet hose to the vehicle.

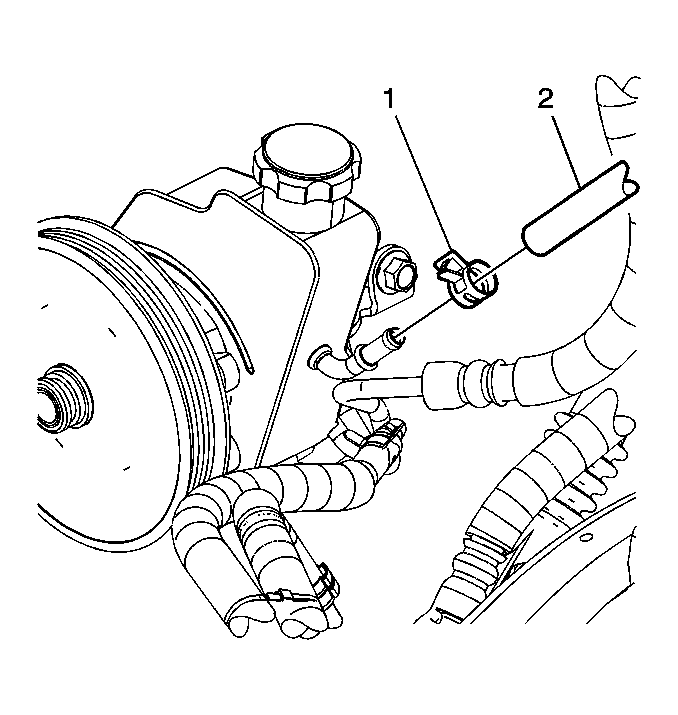

    2. Fig 1: View Of Power Steering Pump, Brake Booster Outlet Hose & Clamp
    GM1831045Courtesy of GENERAL MOTORS CORP.
  2. Compress the clamp (1) and connect the brake booster outlet hose (2)to the power steering pump.
    3. Fig 2: View Of Brake Booster, Outlet Hose & Clamp
    GM1831049Courtesy of GENERAL MOTORS CORP.
  3. Compress the clamp (1) and connect the brake booster outlet hose (2) to the brake booster.
  4. Remove the drain pan from under the vehicle.
  5. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
