Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

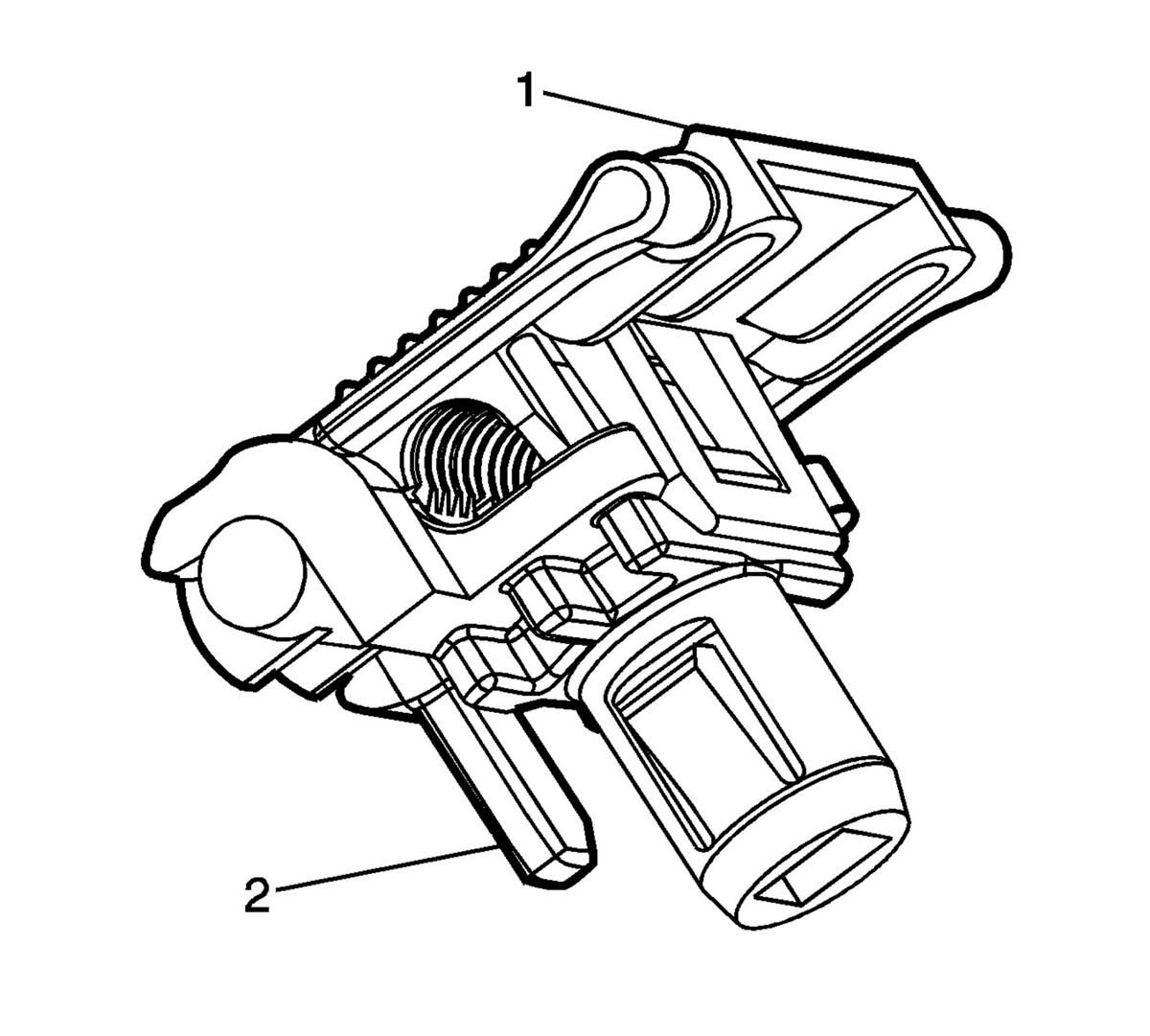

Fig 1: Outside Door Handle Rod Clip

Courtesy of GENERAL MOTORS COMPANY

NOTE:

When replacing the old designed outside door handle rod clip with the new designed clip (1) the anti rotation tab (2) will need to be removed.

NOTE:

When installing the outside door handle rod to latch in order to prevent outside handle lever pre-load, the outside handle shall be fully secured to the door prior to securing integral latch clip to outside handle release rod. Push upward at the bottom the rod clip.

Install the new outside door handle rod clip (1) to the latch.
Verify the outside door handle will release the door latch.
