Steering Column Shroud Replacement (With Electronic Tilt Steering)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

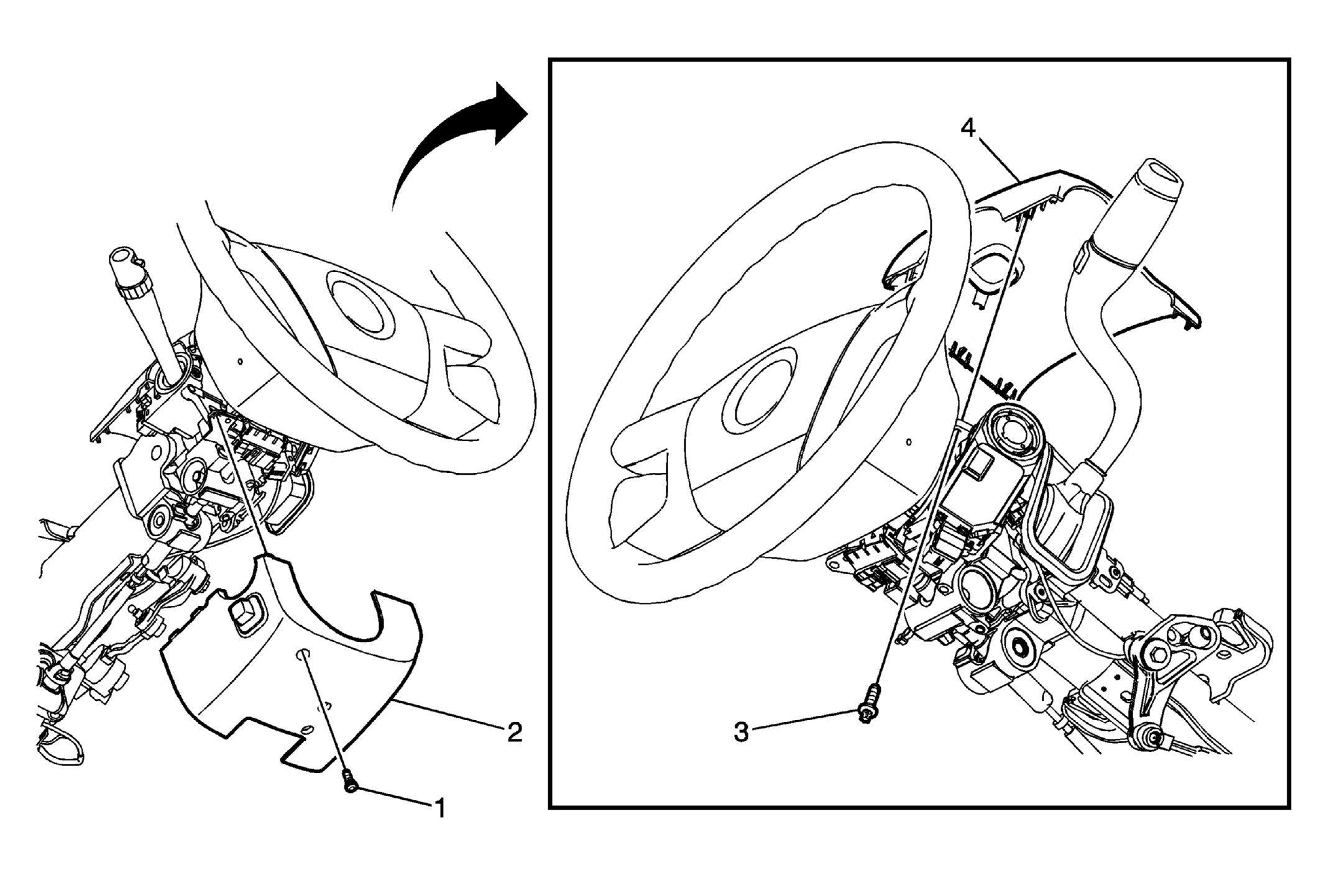

Fig 1: Steering Column Shroud Replacement (With Electronic Tilt Steering)
GM2076032Courtesy of GENERAL MOTORS COMPANY
Steering Column Shroud Replacement (With Electronic Tilt Steering)

Callout Component Name
1 Lower Steering Column Shroud Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
3 N.m (27 lb in)
2 Lower Steering Column Shroud

Procedure

  1. Disconnect any electrical connectors as needed.
  2. Disconnect the shift lever seal from the steering column lower trim cover.
3 Upper Steering Column Shroud Bolt
Tighten
2 N.m (18 lb in)
4 Upper Steering Column Shroud
Procedure
Disconnect the shift lever seal from the steering column upper trim cover.
