Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the park brake cable to the vehicle.

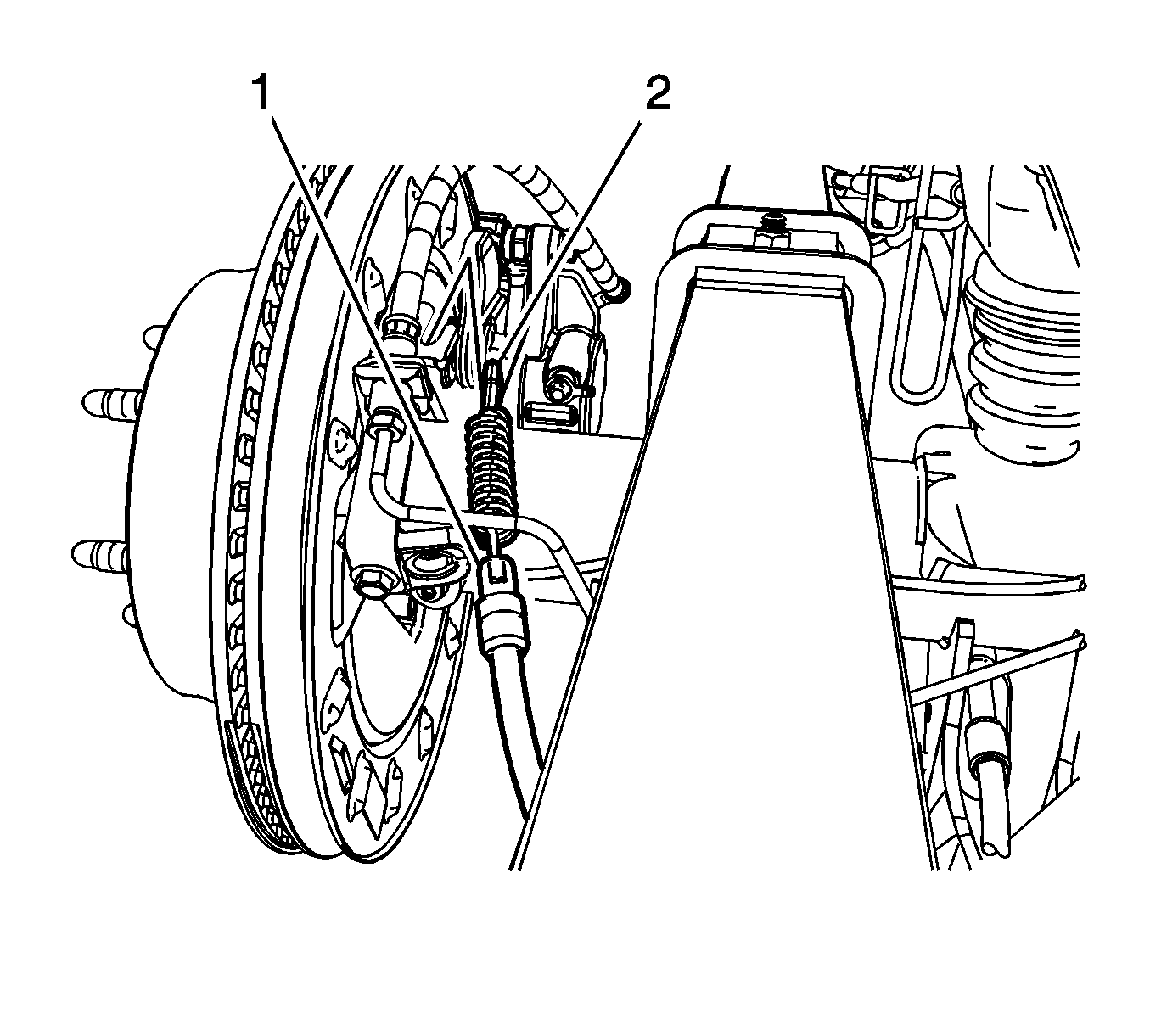

    2. Fig 1: Brake Cable Conduit And Park Brake Cable Eye
    GM1850955Courtesy of GENERAL MOTORS COMPANY
  2. Install the park brake cable (1) to the bracket until the locking tabs are fully engaged.
  3. Connect the park brake cable eye (2) to the park brake actuator lever.
  4. Position the park brake cable to the cable guides on the vehicle frame.
    5. Fig 2: Identifying Left Rear Park Brake Cable
    GM2412798Courtesy of GENERAL MOTORS COMPANY
  5. Install the left rear park brake cable to the frame bracket until the locking tabs are fully engaged.
  6. Connect the left rear park brake cable (1) from the intermediate park brake cable equalizer.
  7. Adjust the park brake. Refer to Parking Brake Adjustment (1500) , Parking Brake Adjustment (2500) .
