Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the intermediate parking brake cable to the vehicle.

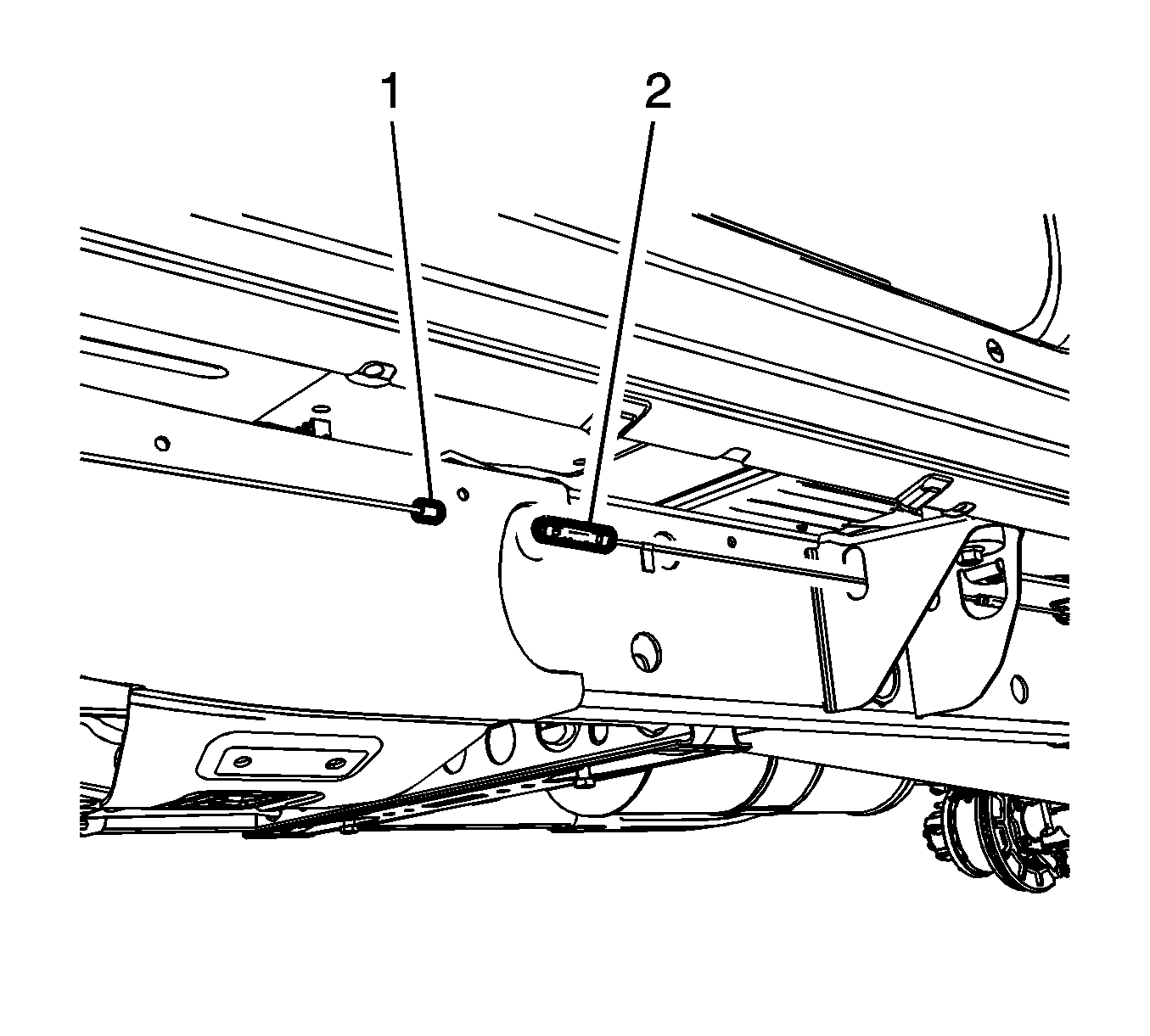

    2. Fig 1: Identifying Parking Brake Cable
    GM2401210Courtesy of GENERAL MOTORS COMPANY
  2. Install the front parking brake cable to the intermediate parking brake cable.
    3. Fig 2: Identifying Right Parking Brake Cable Connector
    GM2401186Courtesy of GENERAL MOTORS COMPANY
  3. Pull the parking brake equalizer forward and install the right rear parking brake cable connector to the intermediate parking brake cable.
  4. Adjust the parking brake. Refer to Parking Brake Adjustment (1500) , Parking Brake Adjustment (2500) .
