Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Release the park brake.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

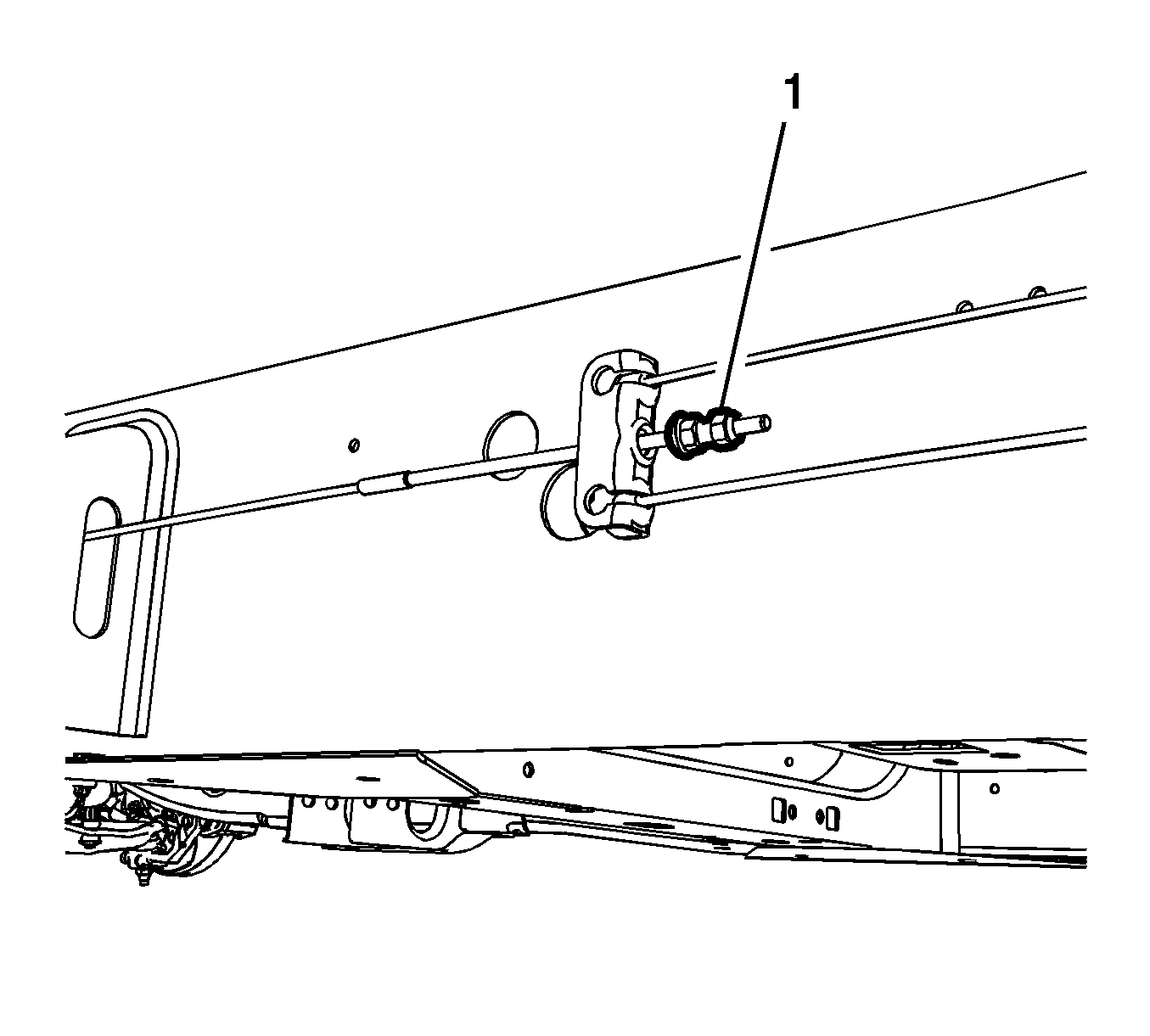

Fig 1: Identifying Intermediate Park Brake Cable Equalizer Nut

Courtesy of GENERAL MOTORS COMPANY

Loosen the intermediate park brake cable equalizer nut (1).

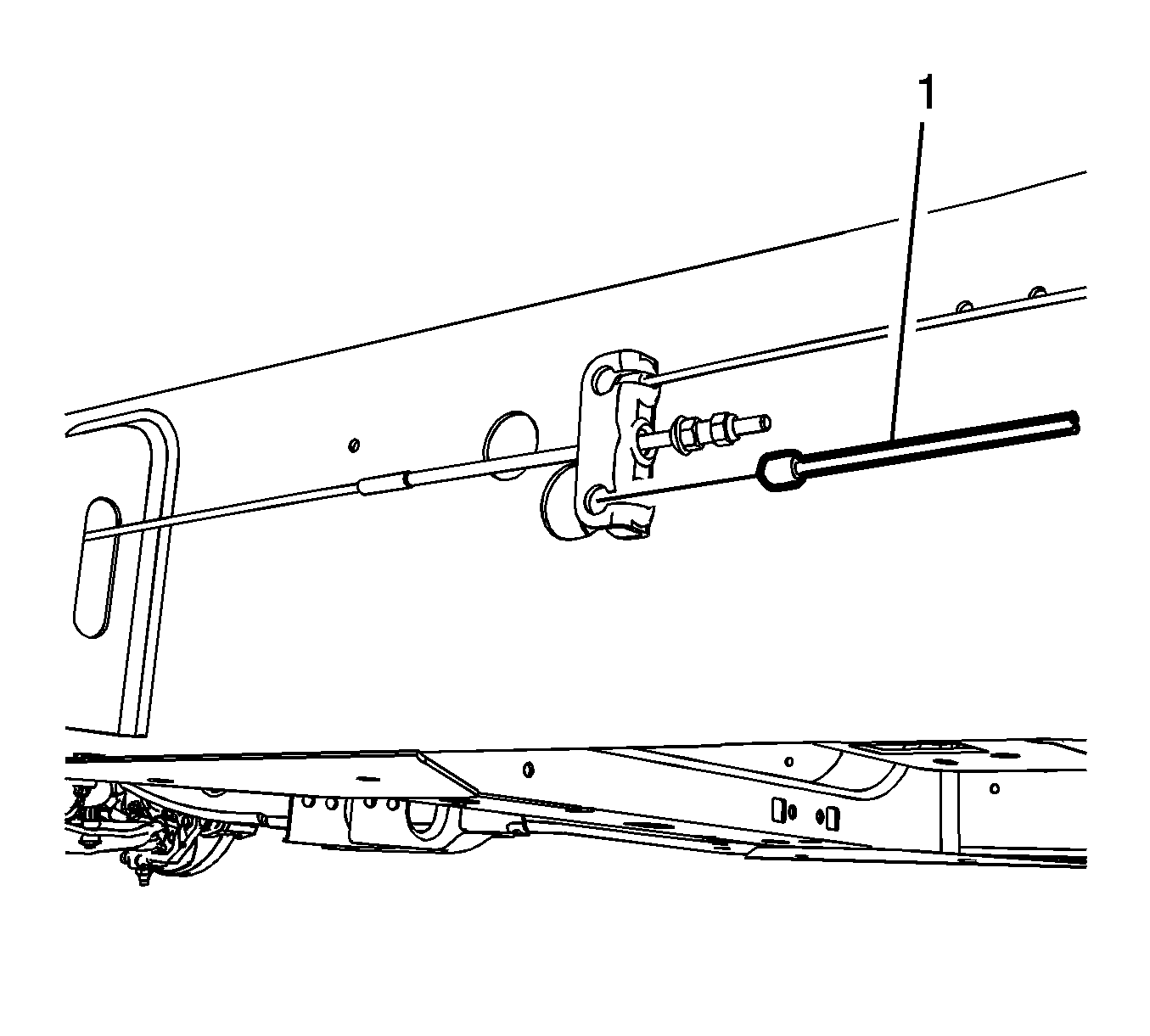

Fig 2: Park Brake Cable And Park Brake Cable Connector

Courtesy of GENERAL MOTORS COMPANY

Drill a 3 mm (1/8 in) hole through the dimple in the intermediate cable connector, near the front park brake cable.
Disconnect the intermediate cable connector (1) from the front park brake cable (2).

Fig 3: Identifying Left Rear Park Brake Cable

Courtesy of GENERAL MOTORS COMPANY

Disconnect the left rear park brake cable (1) from the equalizer.

Fig 4: Identifying Right Rear Park Brake Cable

Courtesy of GENERAL MOTORS COMPANY

Disconnect the right rear park brake cable (1) from the equalizer.
Remove the intermediate park brake cable.
