Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the park brake.
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

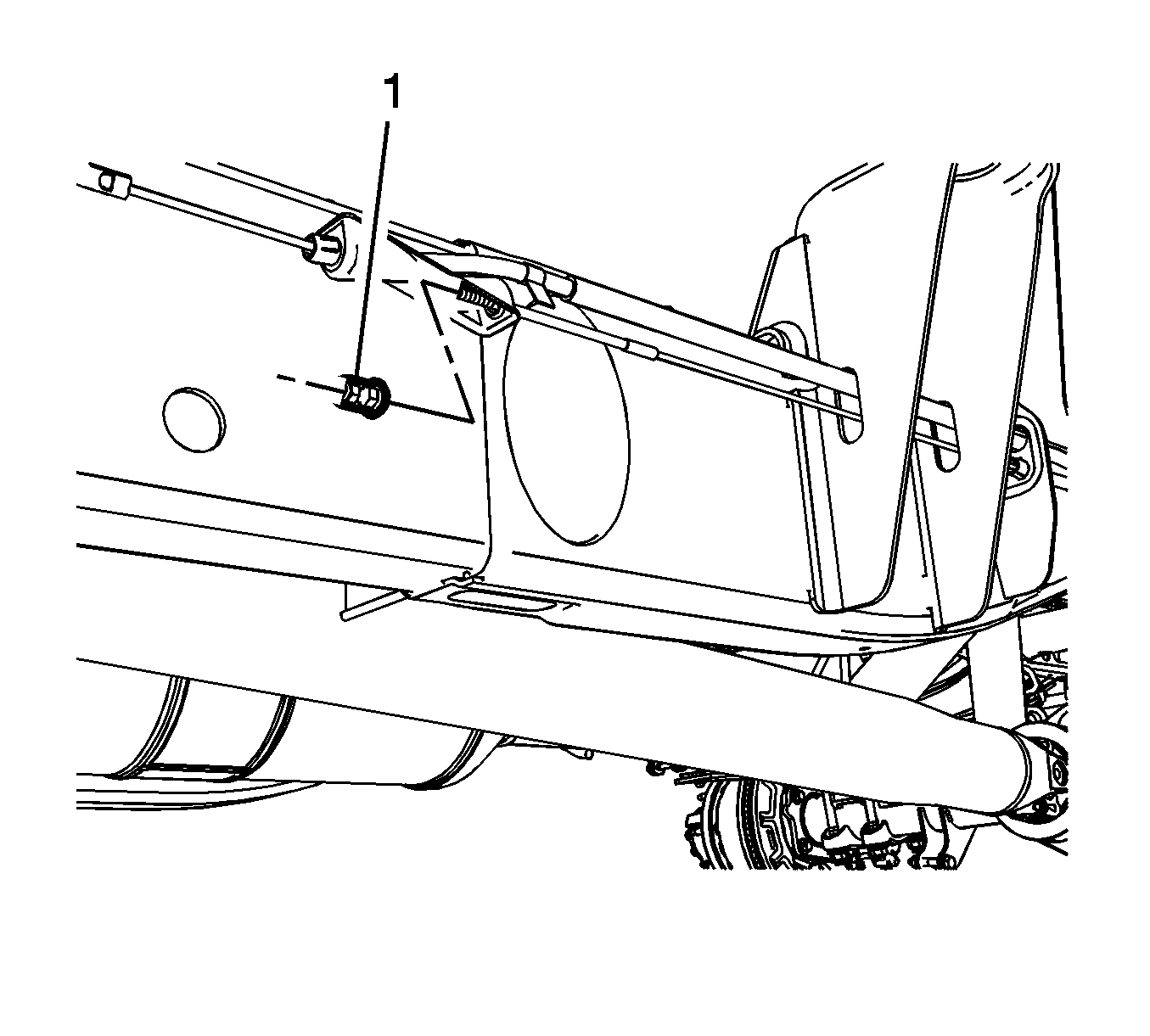

    3. Fig 1: Identifying Parking Brake Equalizer Adjuster Nut
    GM2401179Courtesy of GENERAL MOTORS COMPANY
  3. Remove the parking brake equalizer adjuster nut (1).

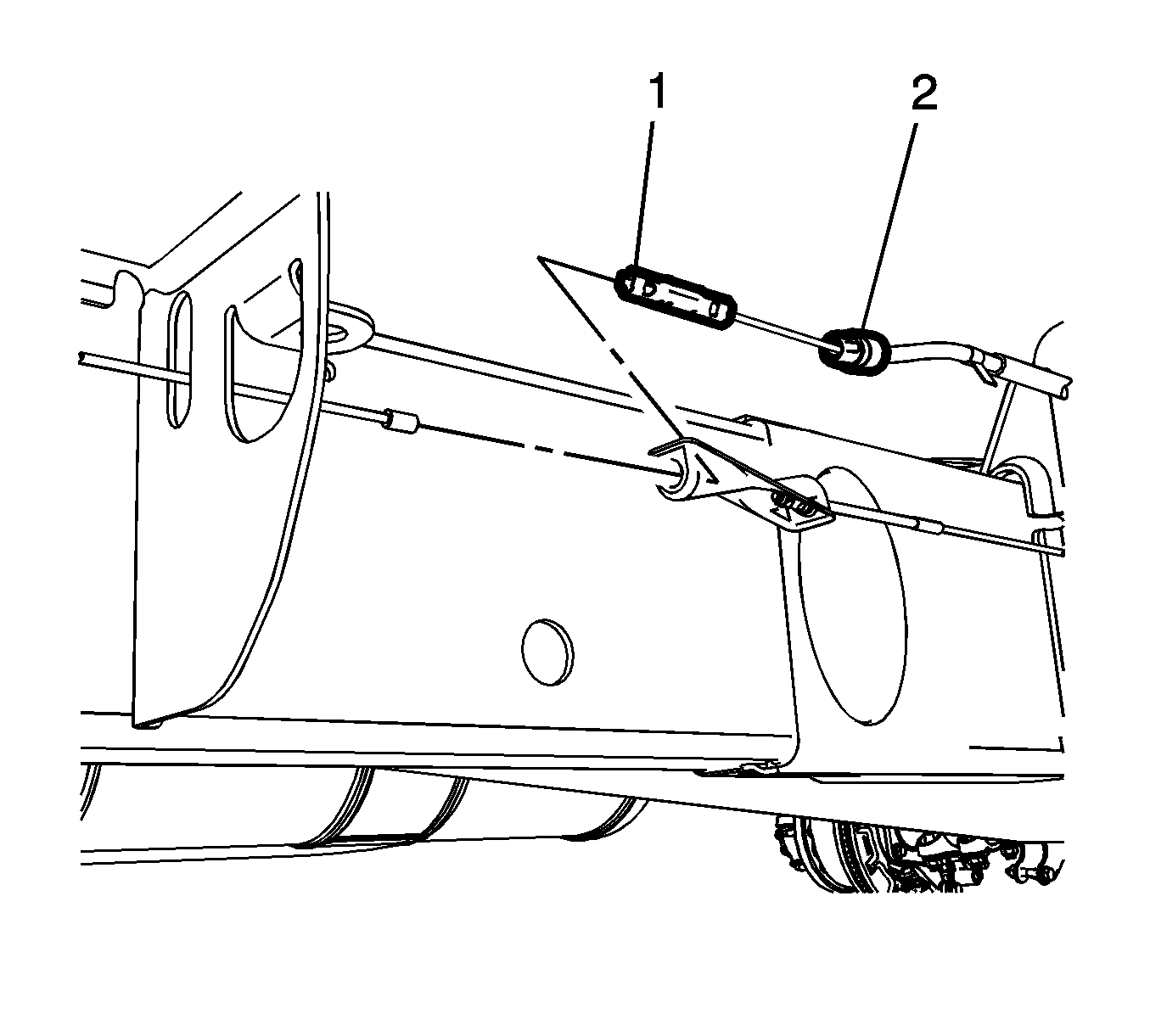

    4. Fig 2: Identifying Right Parking Brake Cable Connector
    GM2401186Courtesy of GENERAL MOTORS COMPANY
  4. Drill a 3 mm (1/8 in) hole through the dimple in the right parking brake cable connector (1) where the front parking brake cable is connected.
  5. Pull the parking brake equalizer forward and disconnect the right parking brake cable connector from the intermediate parking brake cable.
  6. Compress the locking tabs on the right parking brake cable conduit (2) and remove the parking brake cable from the equalizer.
  7. Remove the parking brake cable equalizer.
