Radio Volume Compensator Interior Noise Microphone Replacement (Floor Console Except Cadillac)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Radio Volume Compensator Interior Noise Microphone Replacement (Floor Console Except Cadillac)

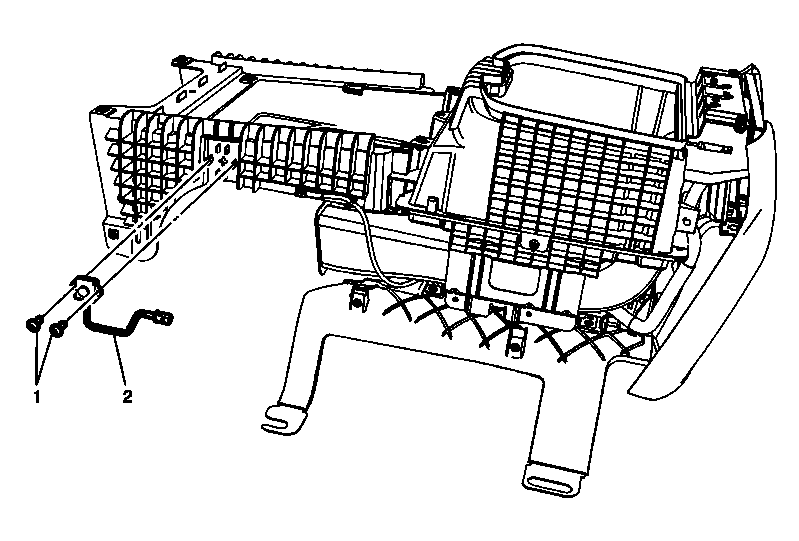

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the Front Floor Console Compartment. Refer to Front Floor Console Compartment Replacement (Except Cadillac) |
|
| 1 | Radio Volume Compensator Interior Noise Microphone (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Radio Volume Compensator Interior Noise Microphone Assembly Procedure Disconnect electrical connector. |
