Window Height Set

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the sunroof sunshade to the open position.
  2. Remove the sunroof panel side covers. Refer to Sunroof Panel Side Opening Closeout Cover Replacement .
  3. Cycle the sunroof to the fully closed position.
  4. Loosen the sunroof window panel screws.

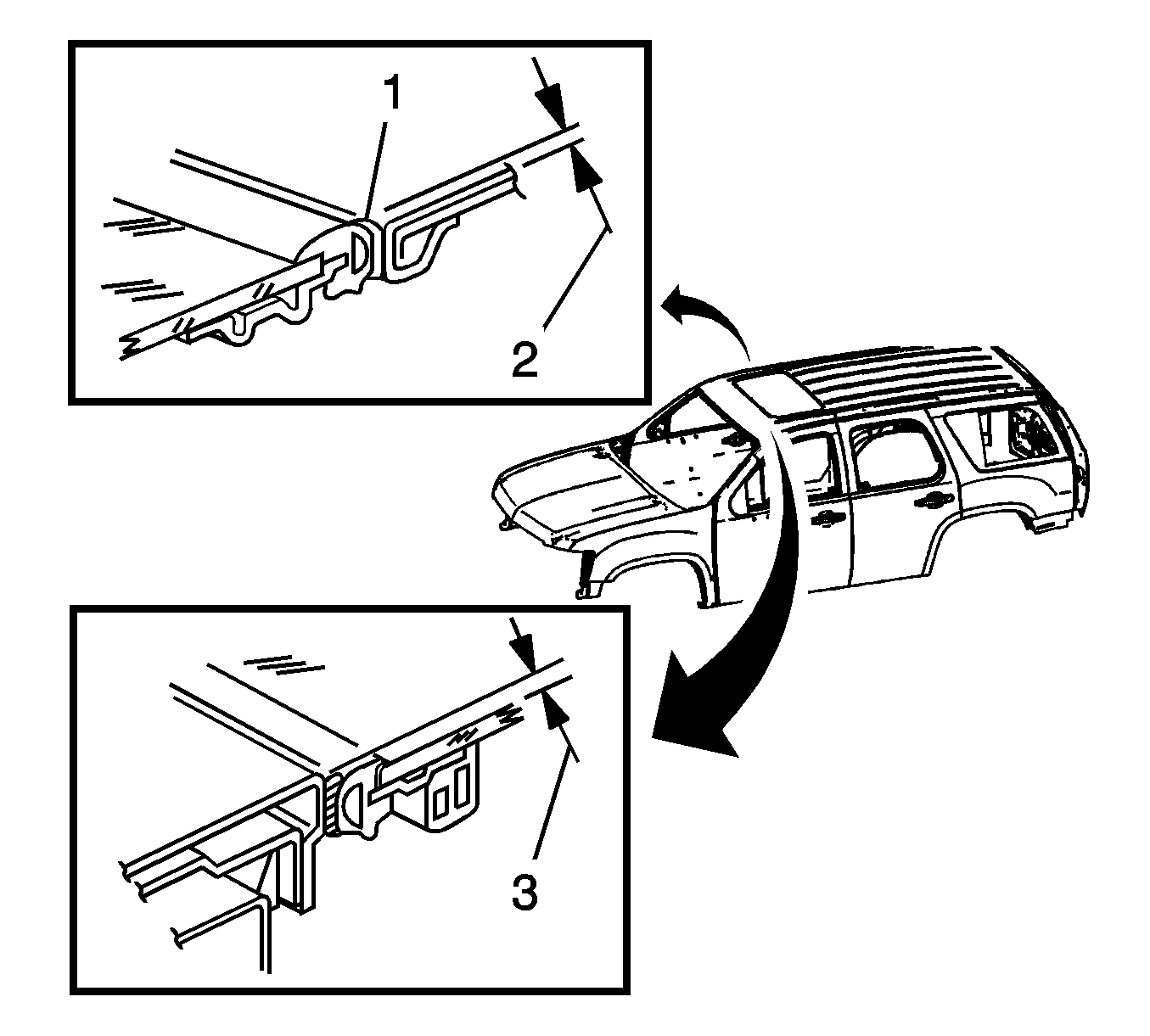

    5. Fig 1: Checking Corners Of Sunroof Window Panel
    GM1685761Courtesy of GENERAL MOTORS COMPANY
  5. Individually adjust the 4 corners of the sunroof window panel.
  6. Adjust the front of the sunroof window panel to 0.0 - 1.0 mm (0.040 in) below the top surface (3) of the roof panel.
  7. Adjust the rear of the sunroof window panel to 1.0+0.0 mm (0.040 in) above the top surface (2) of the roof panel.
    8. CAUTION:

    Refer to Fastener Caution .

  8. Tighten the sunroof window panel screws.

    Tighten

    Tighten the sunroof window panel screws to 4 N.m (35 lb in).

  9. Install the sunroof panel side covers. Refer to Sunroof Panel Side Opening Closeout Cover Replacement .
  10. Close the sunshade.
