Air Distributor Duct Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

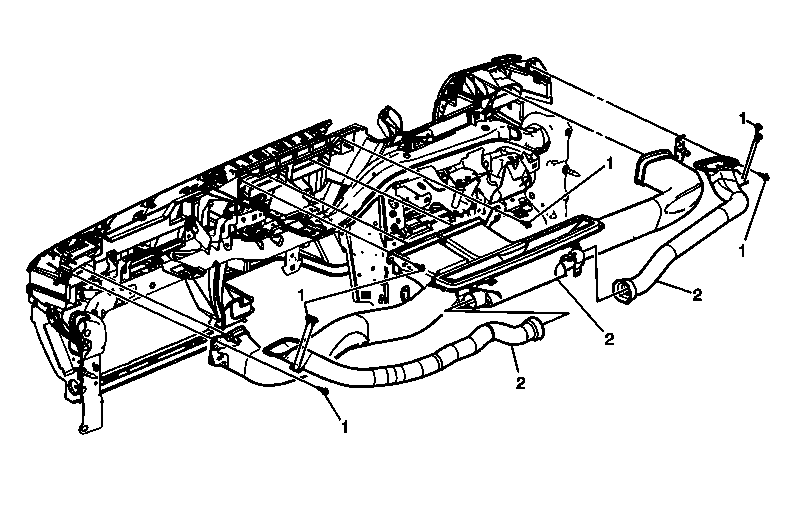

Fig 1: View Of Air Distributor Duct, Bolts & Rivets
GM1698019Courtesy of GENERAL MOTORS COMPANY
Air Distributor Duct Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel to the service position. Refer to Instrument Panel Service Positioning (With SLT) , Instrument Panel Service Positioning (Cadillac) .
1 Air Distributor Bolts and Rivets (Qty: 6)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (16 lb in)
2 Air Distributor Duct
