Headlamp Switch Bezel Replacement (Except Cadillac)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

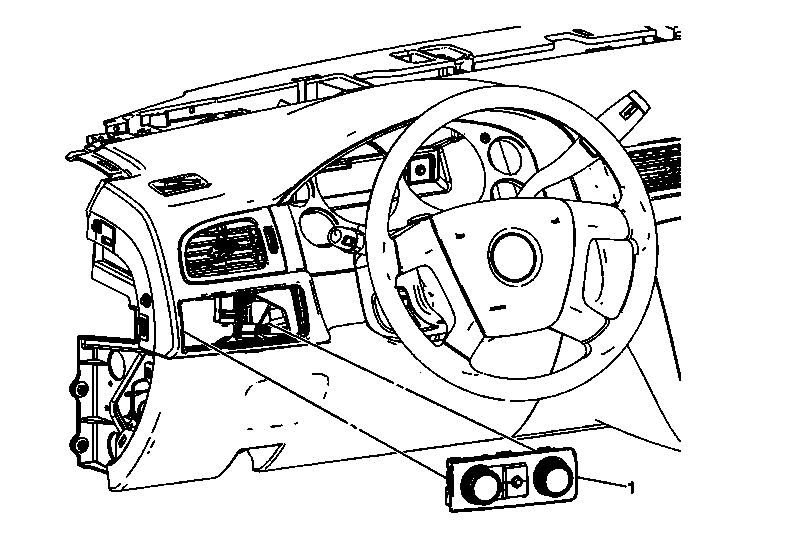

Fig 1: Identifying Headlamp Switch Bezel
GM1996468Courtesy of GENERAL MOTORS COMPANY
Headlamp Switch Bezel Replacement (Except Cadillac)

Callout Component Name
1 Headlamp Switch Plate Assembly

Procedure

  1. Use a flat bladed plastic trim tool in order to remove the trim plate from the instrument panel.
  2. Disconnect the electrical connections.
  3. When replacing the headlamp switch plate assembly, transfer all necessary components.
