Rear Seat Latch Replacement (Split Bench)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

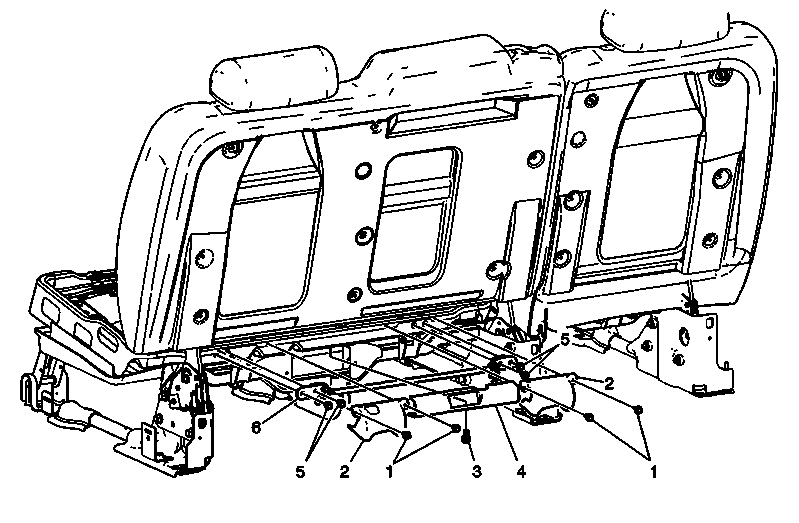

Fig 1: View Of Rear Seat Latch & Components
GM1708131Courtesy of GENERAL MOTORS COMPANY
Rear Seat Latch Replacement (Split Bench)

Callout Component Name
1 Rear Seat Latch Cover Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Rear Seat Latch Cover
3 Rear Seat Latch Center Cover Bolt
Tighten
2 N.m (18 lb in)
4 Rear Seat Latch Center Cover
5 Rear Seat Latch Bolts (Qty: 4)
Tighten
9 N.m (80 lb in)
6 Rear Seat Latch
