Front Floor Console Front Cup Holder Replacement (Except Cadillac)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

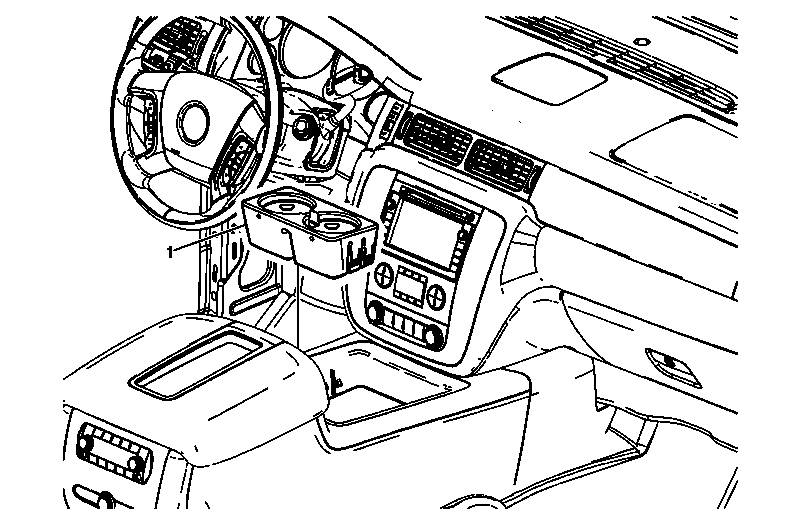

Fig 1: View Of Front Floor Console Cupholder Assembly
GM1689914Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Front Cup Holder Replacement (Except Cadillac)

Callout Component Name
1 Front Floor Console Cupholder Assembly
