Front Upper Fascia Support Bracket Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

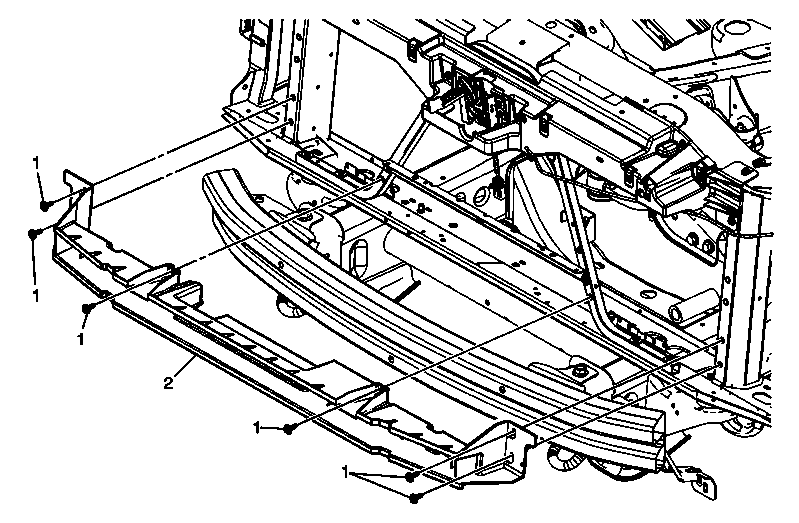

Fig 1: View Of Front Upper Fascia Support Bracket Assembly & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Yukon) , Front Bumper Fascia Replacement (Escalade) , Front Bumper Fascia Replacement (Tahoe) , Front Bumper Fascia Replacement (Avalanche) , Front Bumper Fascia Replacement (Z71) .
1	Front Upper Fascia Support Bracket Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Front Upper Fascia Support Bracket Assembly TIP: Disconnect the wiring harness retainer from each end if equipped.
