Front Fender Rear Upper Bracket Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

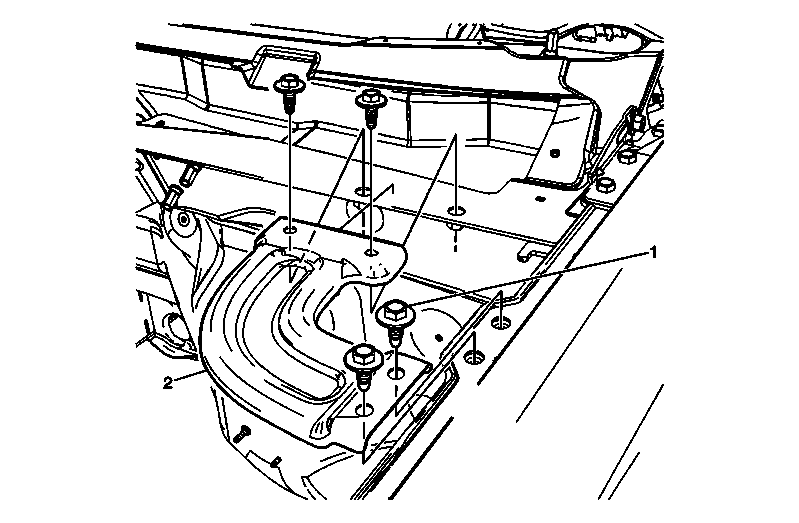

Fig 1: View Of Rear Fender Brace & Bolts
GM1675016Courtesy of GENERAL MOTORS COMPANY
Front Fender Rear Upper Bracket Replacement

Callout Component Name
1 Rear Fender Brace Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Rear Fender Brace
