Rear Axle Component Views

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

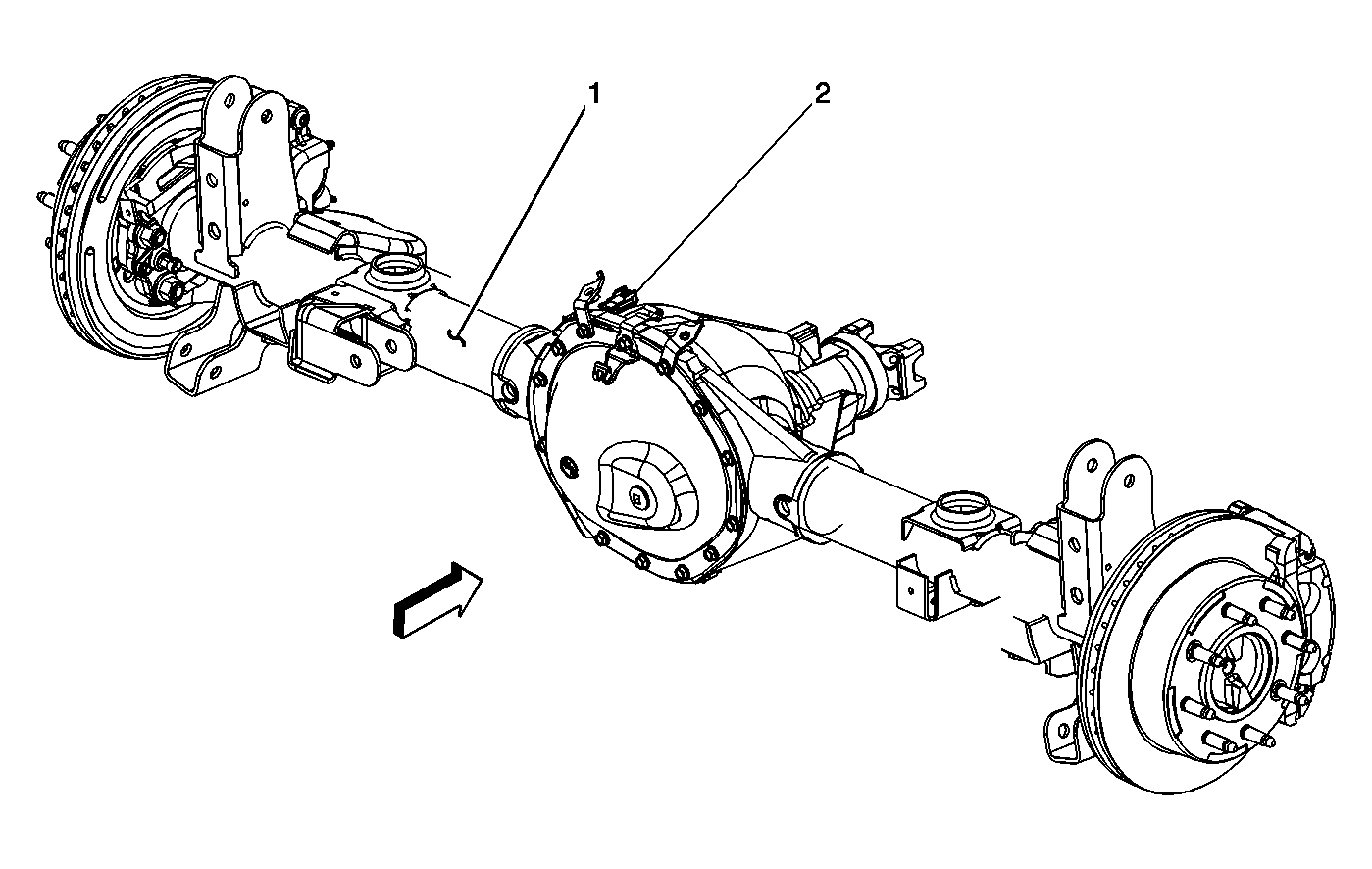

Fig 1: Rear Differential Lock Actuator Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Axle
2	Rear Differential Lock Actuator
