Headlamp Bulb Replacement (Tahoe, Avalanche)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

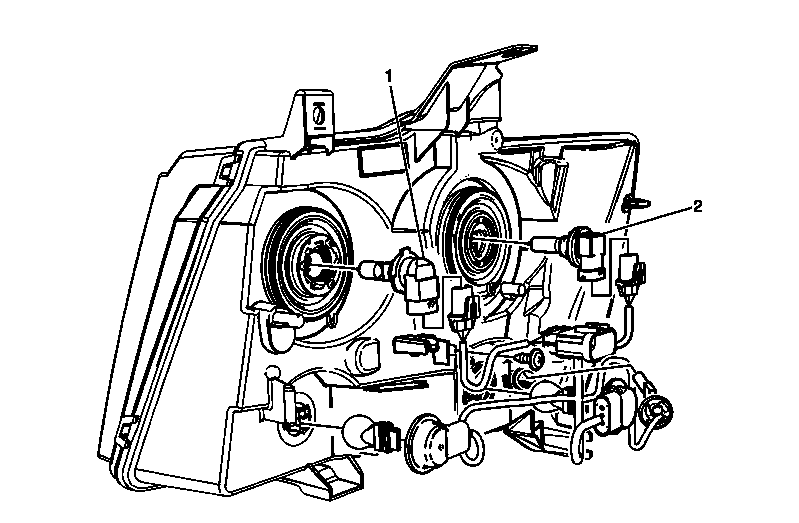

Fig 1: View Of Low Beam Bulb & High Beam Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the headlamp. Refer to Headlamp Replacement (Tahoe, Avalanche) .
1	Low Beam Bulb
2	High Beam Bulb
