Front Side Marker Lamp Replacement (Yukon)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

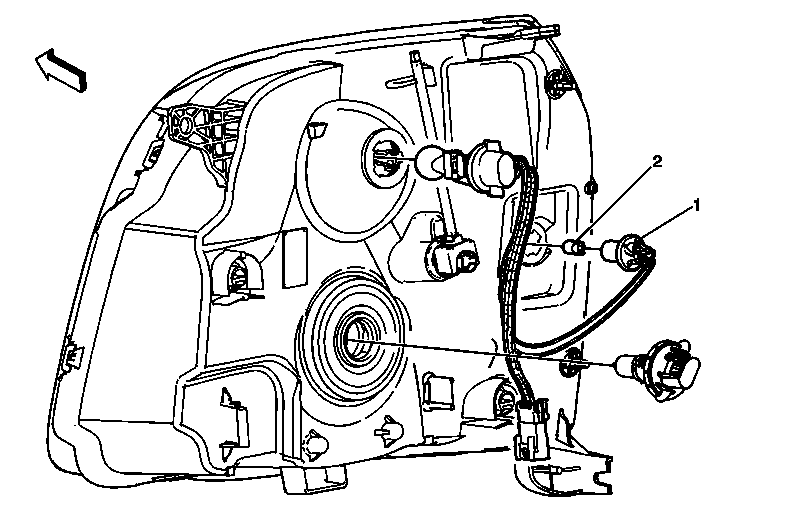

Fig 1: View Of Front Side Marker Bulb & Connector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the headlamp. Refer to Headlamp Replacement (Yukon) , Headlamp Replacement (GMC Yukon Two-mode Hybrid) .
1	Front Side Marker Bulb Connector
2	Front Side Marker Bulb
