Air Inlet Grille Panel Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

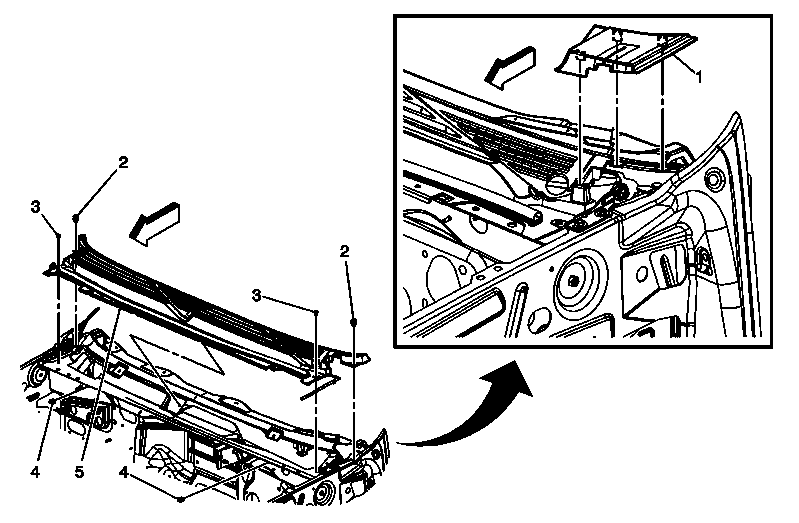

Fig 1: View Of Air Inlet Panel & Components
GM1673096Courtesy of GENERAL MOTORS COMPANY
Air Inlet Grille Panel Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the fixed antenna, if equipped. Refer to Radio Antenna Replacement .
  2. Remove the windshield wiper arms. Refer to Windshield Wiper Arm Replacement (Chevrolet Hybrid Two-mode) , Windshield Wiper Arm Replacement (Conventional) .
  3. Remove the rear hood seal. Refer to Hood Rear Seal Replacement .
1 Air Inlet Panel End Panel
2 Air Inlet Panel Retainer (Qty: 2)
3 Air Inlet Panel Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
4 Air Inlet Panel Clip
5 Air Inlet Panel
