Fascia Grille Replacement (Escalade)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

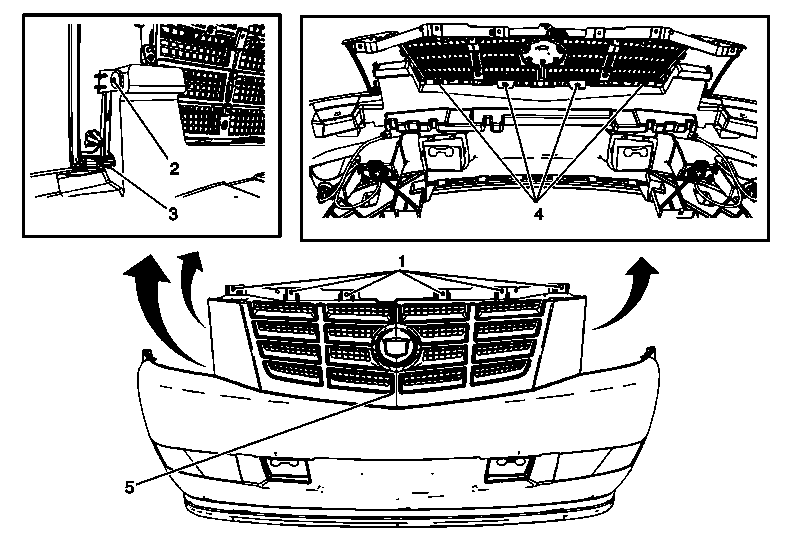

Fig 1: View Of Fascia Grille & Components
GM1803183Courtesy of GENERAL MOTORS COMPANY
Fascia Grille Replacement (Escalade)

Callout Component Name
1 Fascia Grille Push-In Retainers (Qty: 6)
2 Fascia Grille Retainers (Qty: 2)
3 Fascia Grille Retainer Tabs (Qty: 2)
4 Fascia Grille Retainer Tabs (Qty: 4)
5 Fascia Grille
