Torque Dampener Housing Assembly

WARNING: This page is about a different car, the 2012 GMC Yukon, 2012 Chevrolet Tahoe, and 2012 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

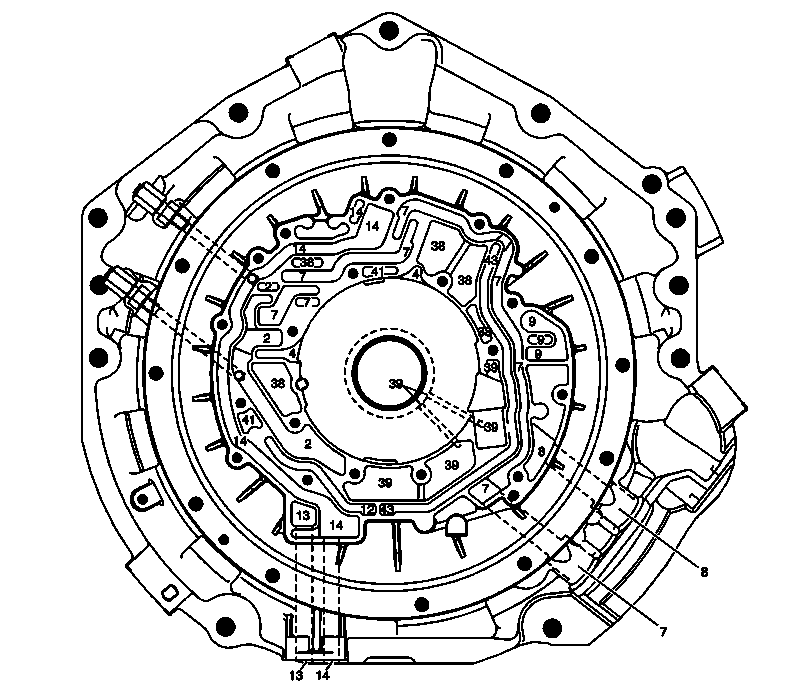

Fig 1: Torque Dampener Housing Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
2	Line
4	Decrease
7	Cooler Feed
8	Lube
9	Regulator Lube
12	PCS Line
13	Auxiliary Suction
14	Auxiliary Line
38	Exhaust
39	Seal Drainback
41	Void
43	Auxiliary Line Boost
