Case Assembly - Rear Case Assembly Side

WARNING: This page is about a different car, the 2012 GMC Yukon, 2012 Chevrolet Tahoe, and 2012 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

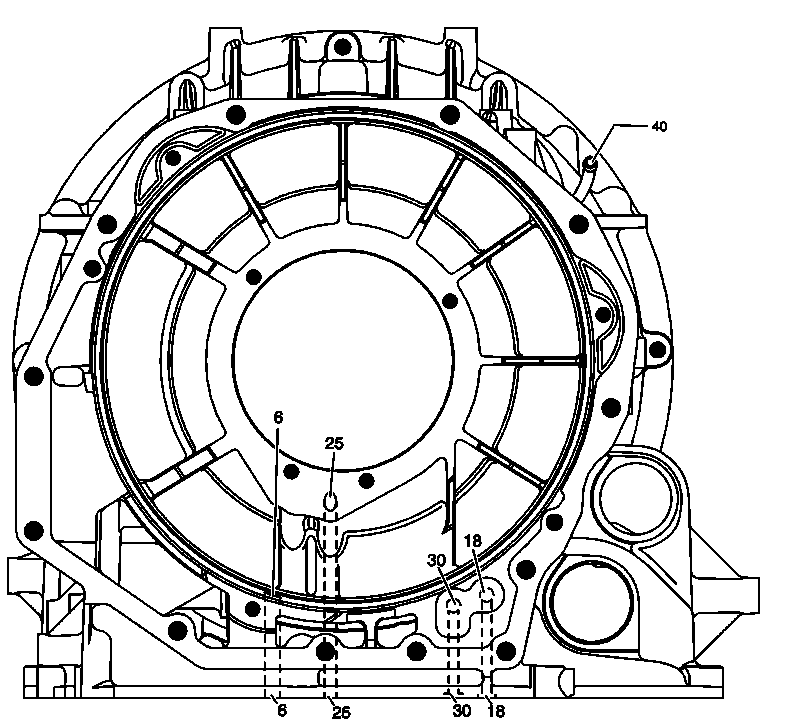

Fig 1: Case Assembly - Rear Case Assembly Side
GM1968920Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
6 B Cooling
18 HL 12 Clutch
25 13 Clutch
30 HD 234 Clutch
40 Vent
