2-6 Clutch Assembly
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

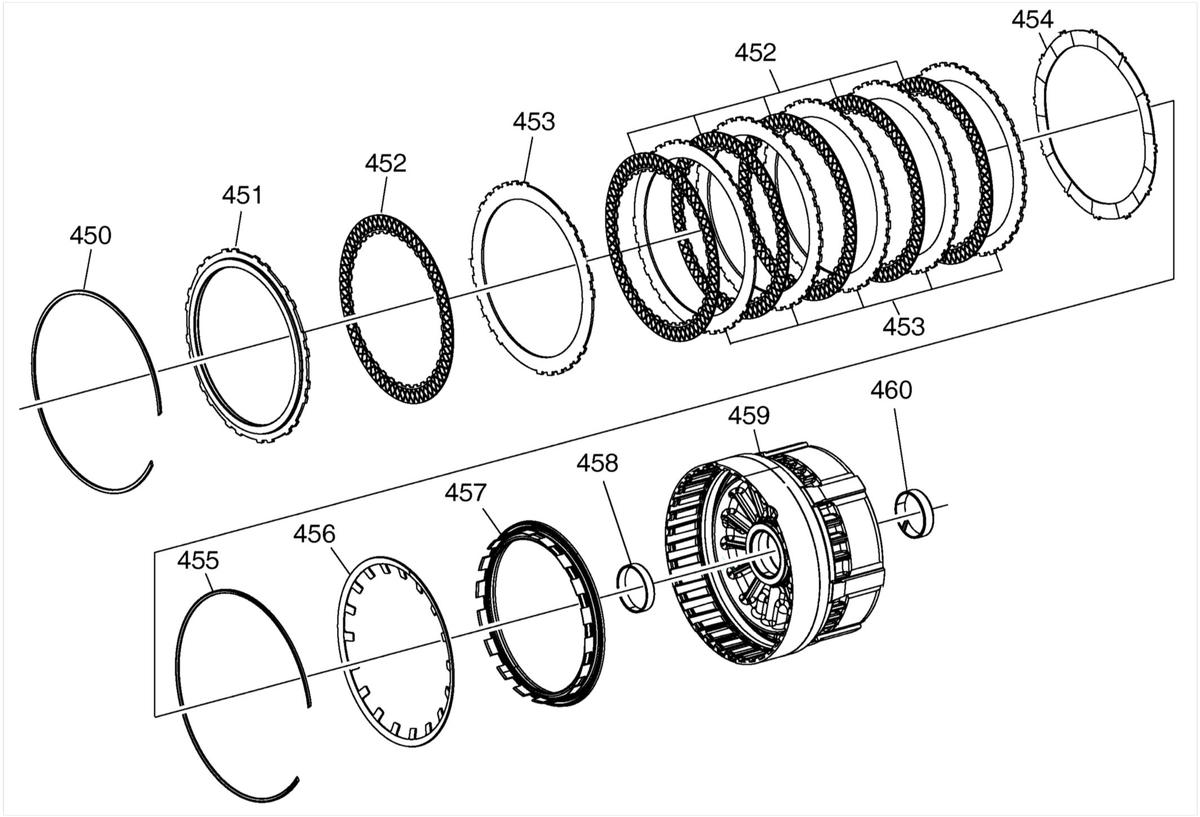

| Callout | Component Name |
|---|---|
| 450 | 2-6 Clutch Backing Plate Retaining Ring |
| 451 | 2-6 Clutch Backing Plate |
| 452 | 2-6 Clutch Plate Assembly |
| 453 | 2-6 Clutch Plate |
| 454 | 2-6 Clutch (Waved) Plate |
| 455 | 2-6 Clutch Spring Retaining Ring |
| 456 | 2-6 Clutch Spring |
| 457 | 2-6 Clutch Piston Assembly |
| 458 | Output Carrier Outer Sun Gear Shaft (Front) Bushing |
| 459 | Center Support Assembly |
| 460 | Output Carrier Outer Sun Gear Shaft Rear Bushing |
