Clutch Plate Package
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

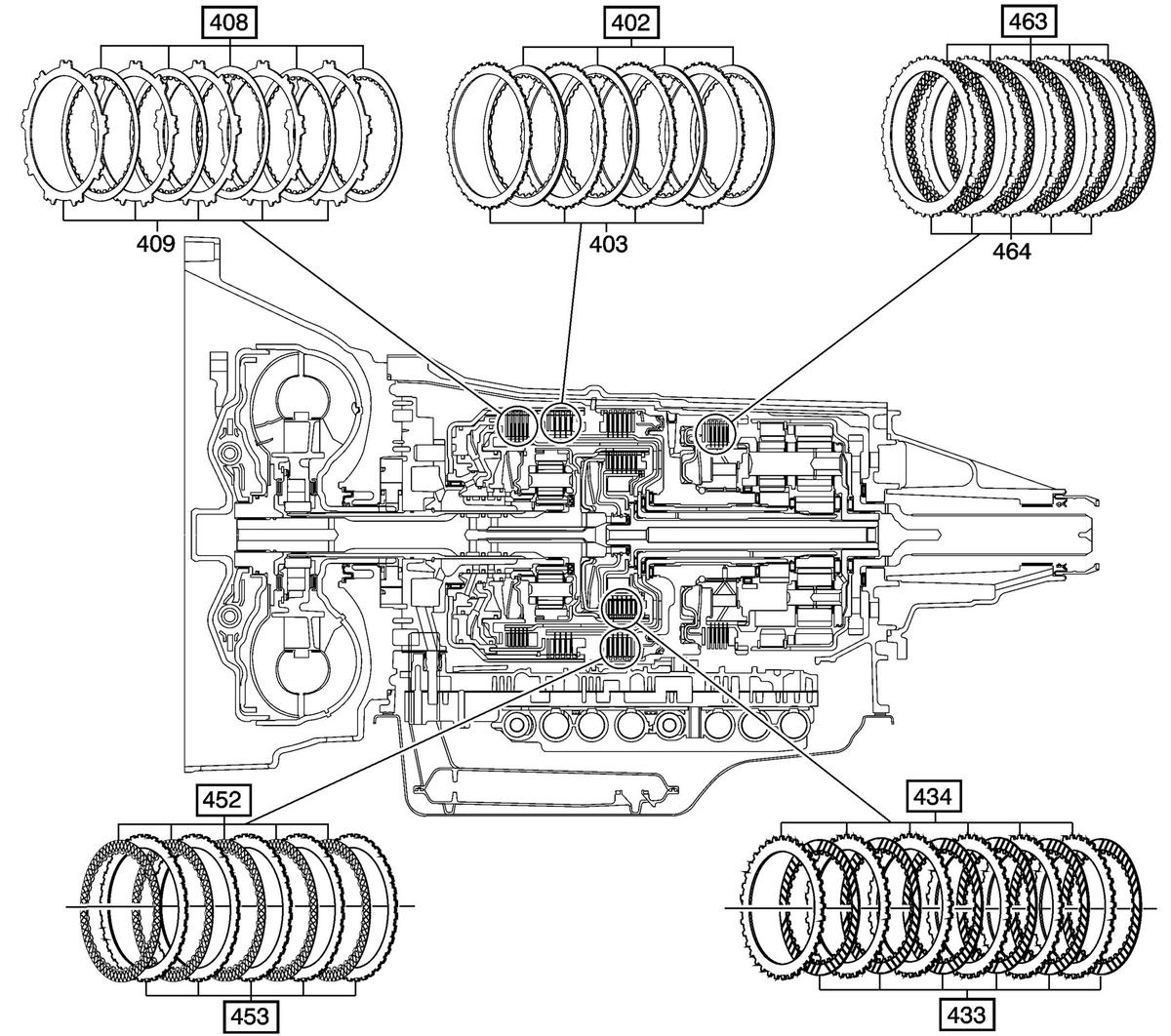

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
Clutch Plate Package
| Callout | Quantity | Component Name |
|---|---|---|
| 402 | 4 | 3-5 Reverse Clutch Plate Assembly |
| 408 | 5 | 1-2-3-4 Clutch Plate Assembly |
| 433 | 6 | 4-5-6 Clutch Plate Assembly |
| 434 | 6 | 4-5-6 Clutch Plate |
| 452 | 5 | 2-6 Clutch Plate Assembly |
| 453 | 5 | 2-6 Clutch Plate |
| 463 | 5 | Low and Reverse Clutch Plate Assembly |
