A/Trans Service Seal Kit
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

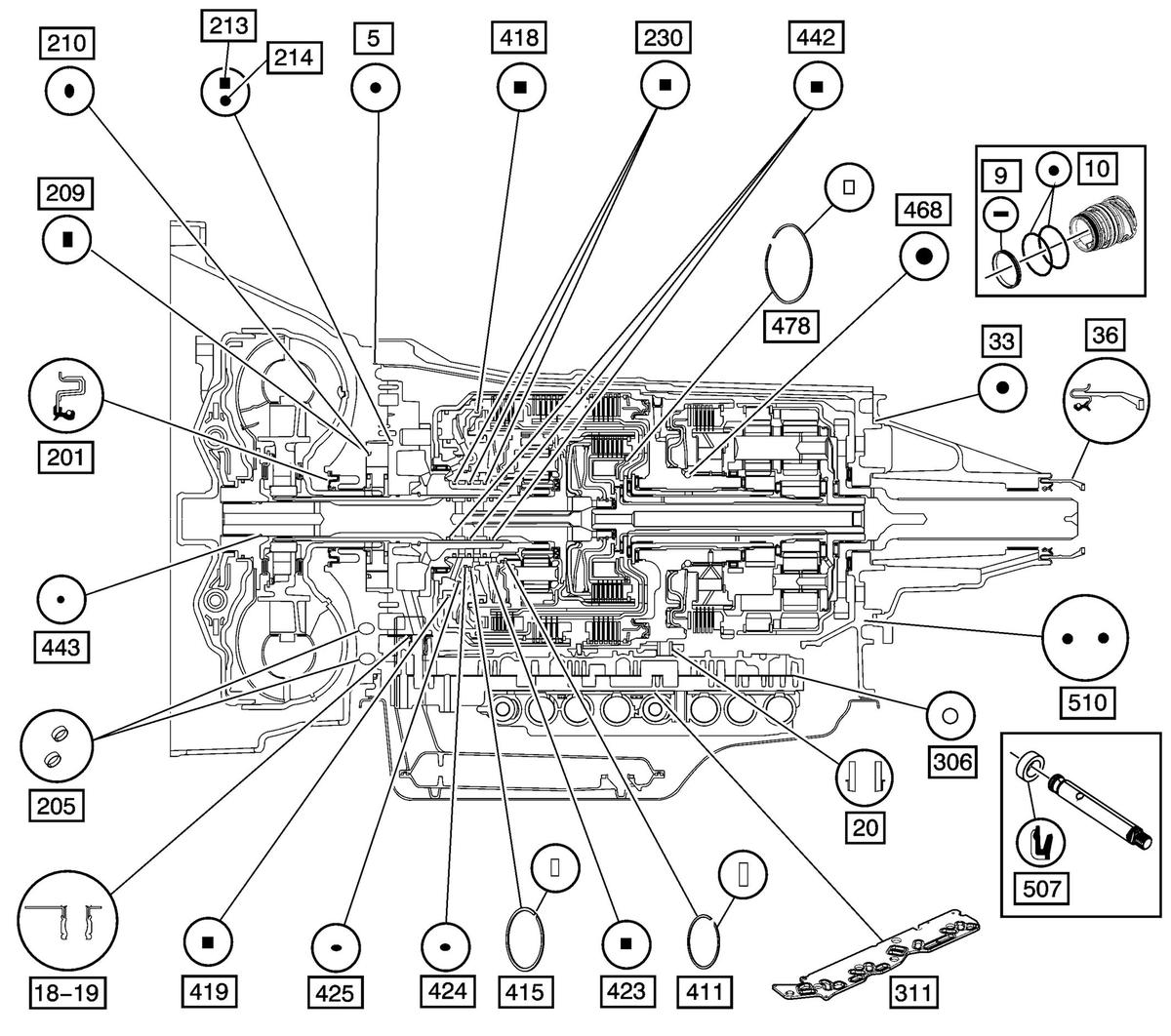

A/Trans Service Seal Kit
| Callout | Quantity | Component Name |
|---|---|---|
| 5 | 1 | A/Trans Fluid Pump Seal |
| 9 | 1 | A/Trans Connector Seal |
| 10 | 2 | A/Trans Connector (O-Ring) Seal |
| 18 | 1 | A/Trans Fluid Pump Seal Assembly |
| 19 | 1 | A/Trans Fluid Pump Seal Assembly |
| 20 | 1 | Center Support Fluid Passage Seal Assembly |
| 33 | 1 | A/Trans Case Extension Seal |
| 36 | 1 | Prop Shaft Front Slip Yoke Oil Seal |
| 201 | 1 | Torque Converter Fluid Seal Assembly |
| 205 | 2 | A/Trans Fluid Cooler Pipe Fitting Seal |
| 209 | 1 | A/Trans Fluid Pump Slide Fluid Seal Ring |
| 210 | 1 | A/Trans Fluid Pump Slide (O-Ring) Seal |
| 213 | 1 | A/Trans Fluid Pump Slide Seal |
| 214 | 1 | A/Trans Fluid Pump Slide Seal Support |
| 230 | 3 | 1-2-3-4 and 3-5 Reverse Clutch Fluid Seal Ring |
| 306 | 7 | Control Valve Body Ball Check Valve |
| 311 | 1 | Control Solenoid Valve Filter Plate Assembly |
| 411 | 1 | 1-2-3-4 Clutch Piston Dam Retaining Ring |
| 415 | 1 | 1-2-3-4 Clutch Piston Housing Retaining Ring |
| 418 | 1 | 3-5 Reverse Clutch Piston Dam (O-Ring) Seal |
| 419 | 1 | 3-5 Reverse Clutch Piston Inner Seal |
| 423 | 1 | 1-2-3-4 Clutch Piston Inner Seal |
| 424 | 1 | 1-2-3-4 Clutch Piston Housing Seal |
| 425 | 1 | 1-2-3-4 Clutch Piston Housing Seal |
| 442 | 3 | Turbine Shaft Fluid Seal Ring |
| 443 | 1 | Turbine Shaft (O-Ring) Seal |
| 468 | 1 | Low Clutch Sprag Seal |
| 478 | 1 | 4-5-6 Clutch Dampener Retaining Ring |
| 507 | 1 | Manual Shift Shaft Seal |
| 510 | 2 | Park Pawl Actuator Guide (O-Ring) Seal |
