A/Trans Fluid Pump Cover Package
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

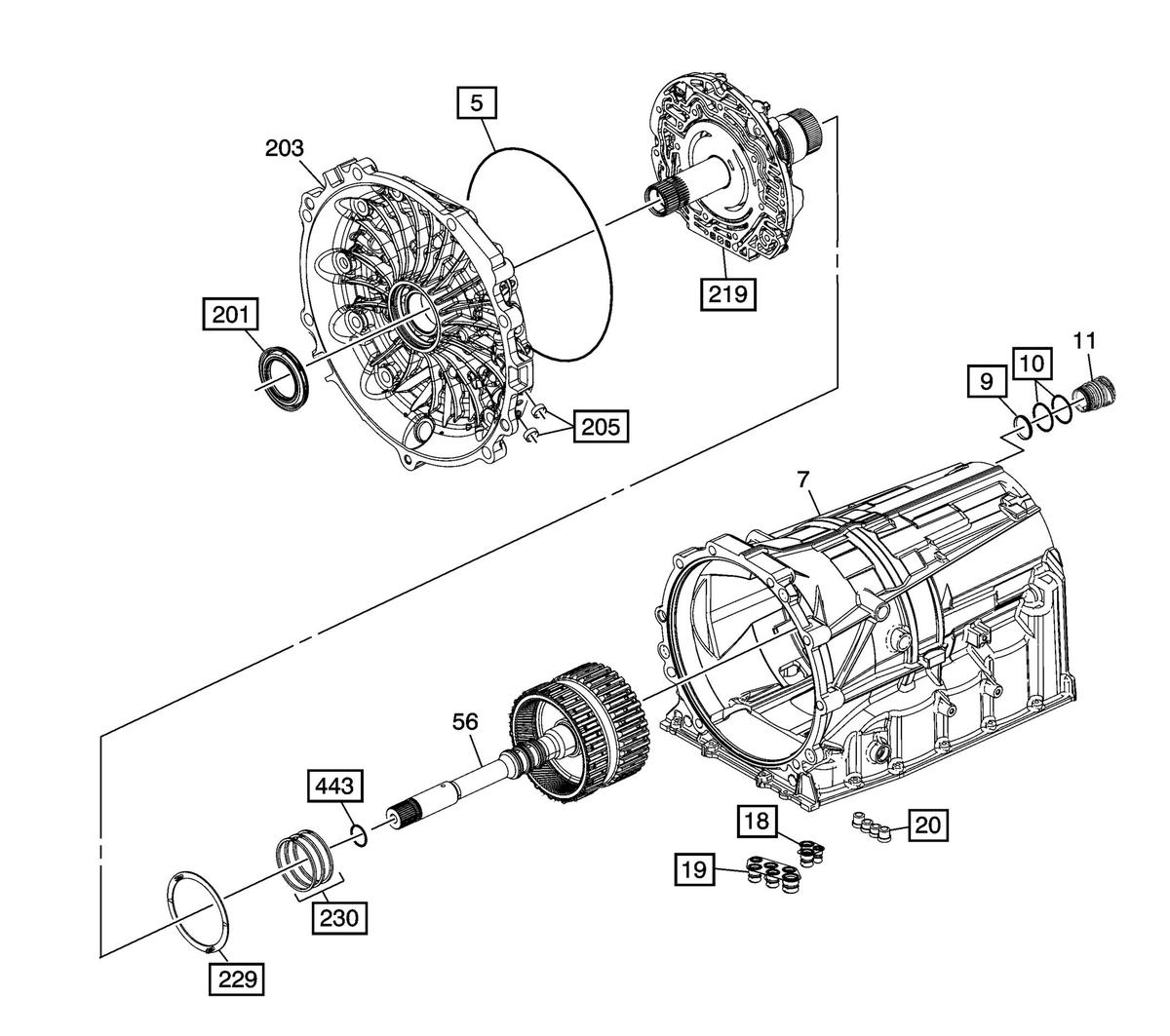

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
A/Trans Fluid Pump Cover Package
| Callout | Quantity | Component Name |
|---|---|---|
| 5 | 1 | A/Trans Fluid Pump Seal |
| 9 | 1 | A/Trans Connector Seal |
| 10 | 2 | A/Trans Connector (O-Ring) Seal |
| 18 | 1 | A/Trans Fluid Pump Seal Assembly |
| 19 | 1 | A/Trans Fluid Pump Seal Assembly |
| 20 | 1 | Center Support Fluid Passage Seal Assembly |
| 201 | 1 | Torque Converter Fluid Seal Assembly |
| 205 | 2 | A/Trans Fluid Cooler Pipe Fitting |
| 219 | 1 | A/Trans Fluid Pump Cover Assembly |
| 229 | 1 | 1-2-3-4 and 3-5 Reverse Clutch Housing Thrust Washer |
| 230 | 3 | 1-2-3-4 and 3-5 Reverse Clutch Fluid Seal Ring |
| 443 | 1 | Turbine Shaft (O-Ring) Seal |
