A/Trans Electrical Connector Passage Sleeve Seal Kit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

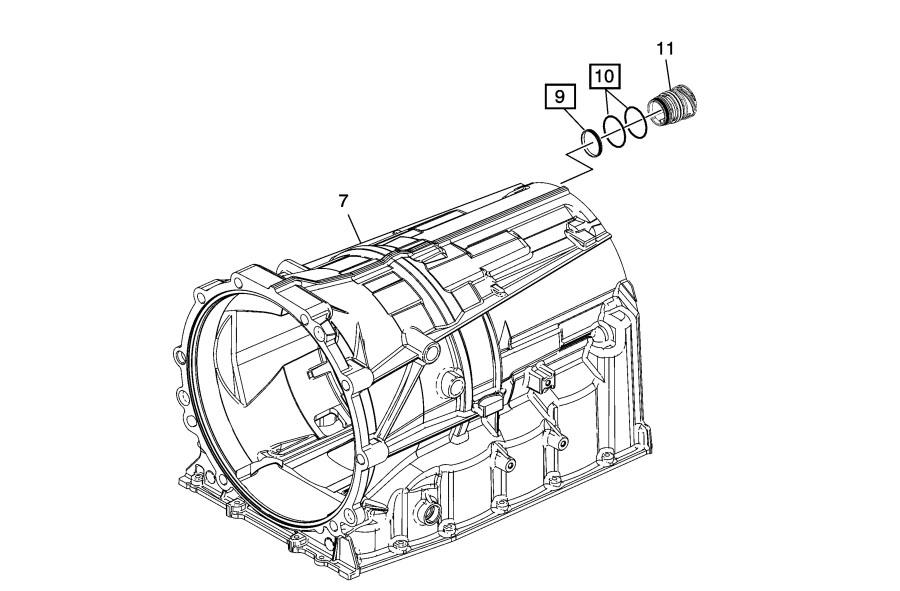

Fig 1: A/Trans Electrical Connector Passage Sleeve Seal Kit

Courtesy of GENERAL MOTORS CORP.

NOTE:

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

A/Trans Electrical Connector Passage Sleeve Seal Kit

Callout	Quantity	Component Name
9	1	A/Trans Connector Seal
10	2	A/Trans Connector (O-Ring) Seal
