A/Trans Control Solenoid Valve Assembly Seal Kit
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

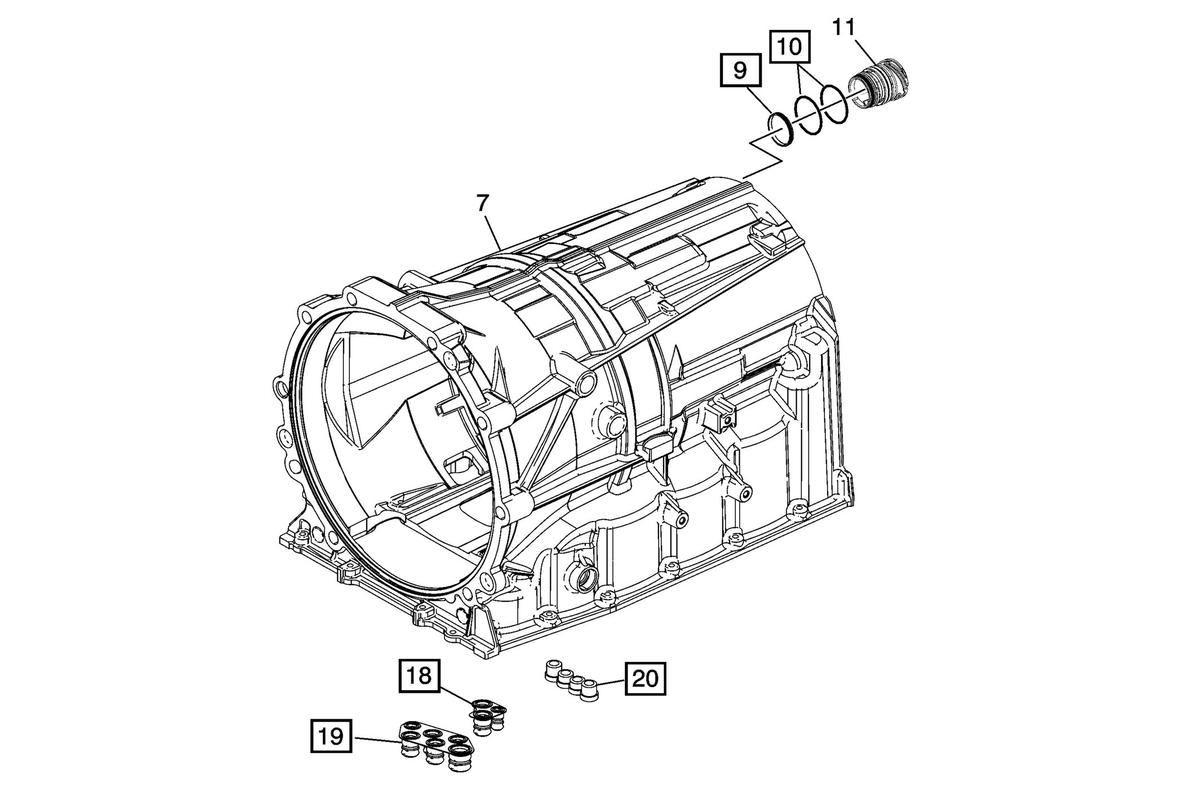

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
A/Trans Control Solenoid Valve Assembly Seal Kit
| Callout | Quantity | Component Name |
|---|---|---|
| 9 | 1 | A/Trans Connector Seal |
| 10 | 2 | A/Trans Connector (O-Ring) Seal |
| 18 | 1 | A/Trans Fluid Pump Seal Assembly |
| 19 | 1 | A/Trans Fluid Pump Seal Assembly |
| 20 | 1 | Center Support Fluid Passage Seal Assembly |
