Instrument Panel Harness Underhood Ground

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Instrument Panel Harness Underhood Ground

Component Name Callout
G110 1

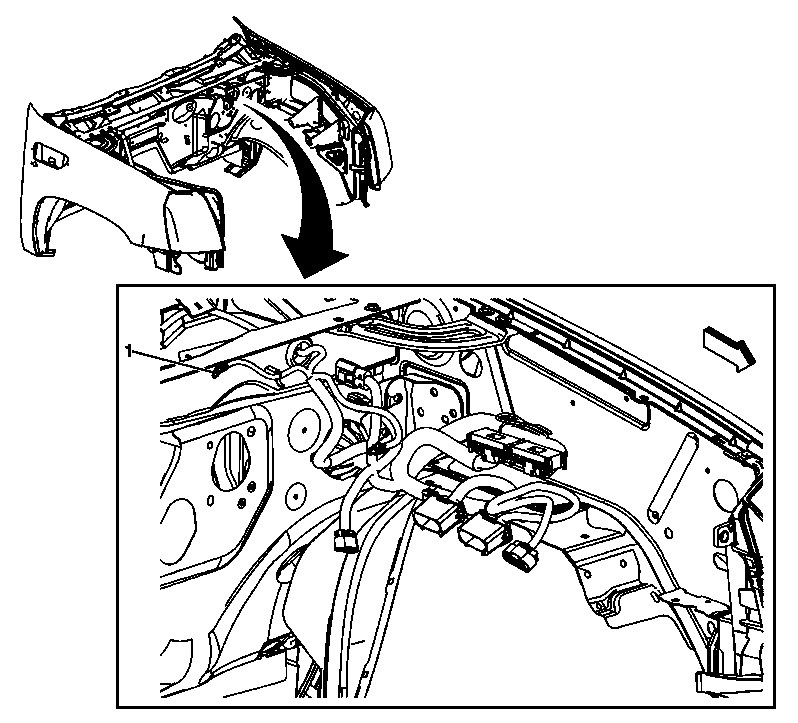

Fig 1: Instrument Panel Harness Underhood Ground
GM2077146Courtesy of GENERAL MOTORS CORP.
