Engine Harness Grounds (HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Engine Harness Grounds (HP2)

Component Name Callout
G105 1
G103 2

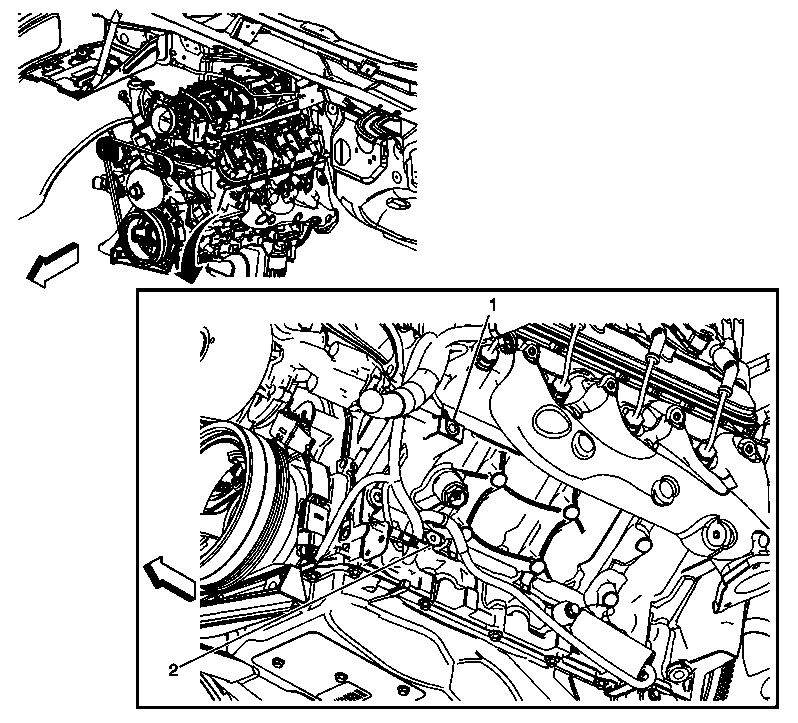

Fig 1: Engine Harness Grounds (HP2)
GM2077140Courtesy of GENERAL MOTORS CORP.
