Drive Motor Battery Enclosure Grounds (HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Component Name	Callout
Drive Motor Generator Battery Control Harness	1
Drive Motor Generator Battery Enclosure	2
G311	3
G312	4
Vehicle floor, 2nd row seats	5

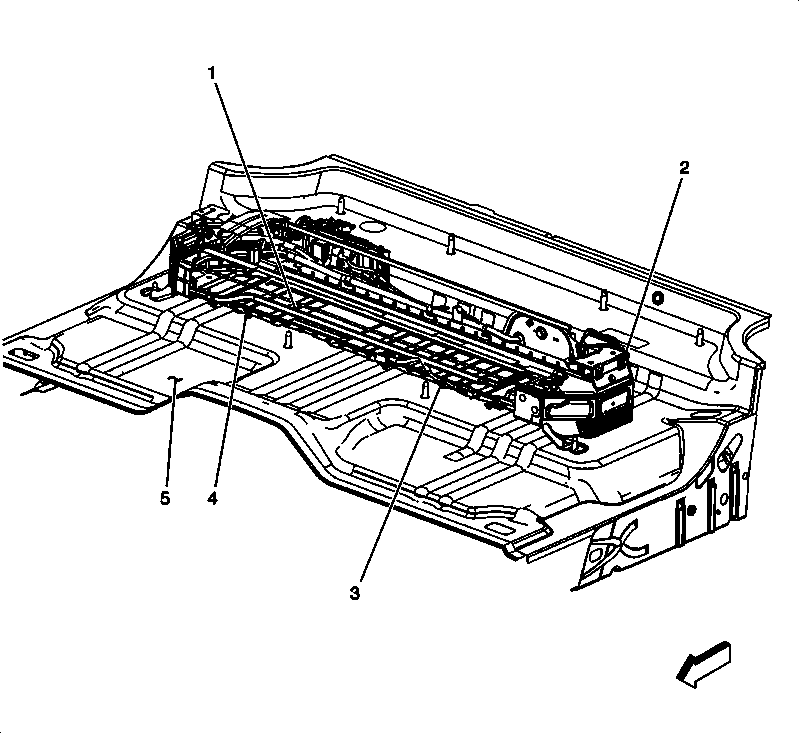

Fig 1: Drive Motor Battery Enclosure Grounds (HP2)

Courtesy of GENERAL MOTORS CORP.
