Right Rear Door Components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Right Rear Door Components

Component Name Callout
Window Switch- Right Rear 1
Door Latch- Right Rear 2
Inflatable Restraint Side Impact Sensor (SIS)- Right Rear (ASF) 3
Speaker- Right Rear 4
Window Motor- Right Rear 5

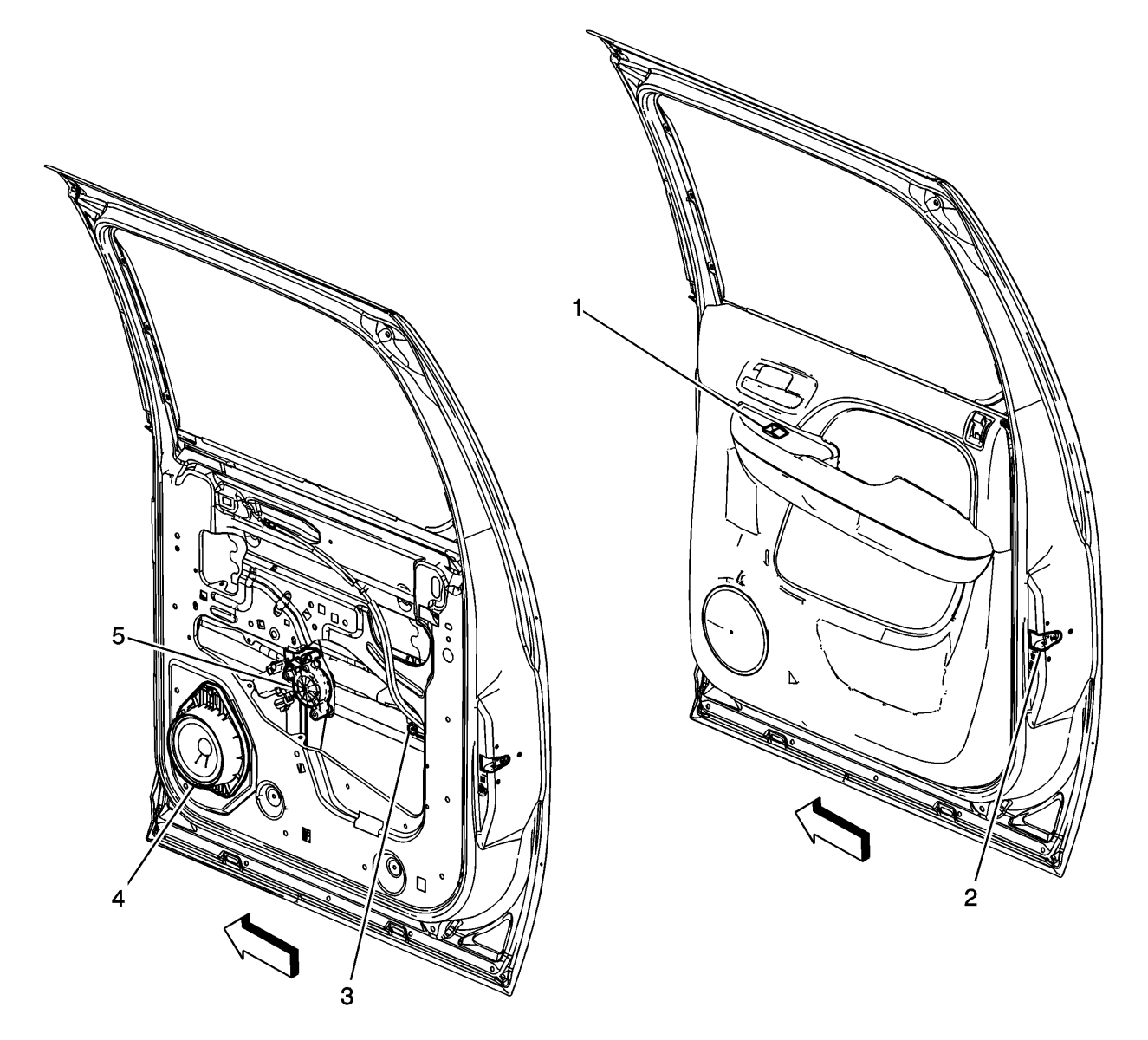

Fig 1: Right Rear Door Components
GM2048242Courtesy of GENERAL MOTORS CORP.
