Left Rear Door Components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Component Name	Callout
Window Switch- Left Rear	1
Window Motor- Left Rear	2
Speaker- Left Rear	3
Inflatable Restraint Side Impact Sensor (SIS)- Left Rear (ASF)	4
Door Latch- Left Rear	5

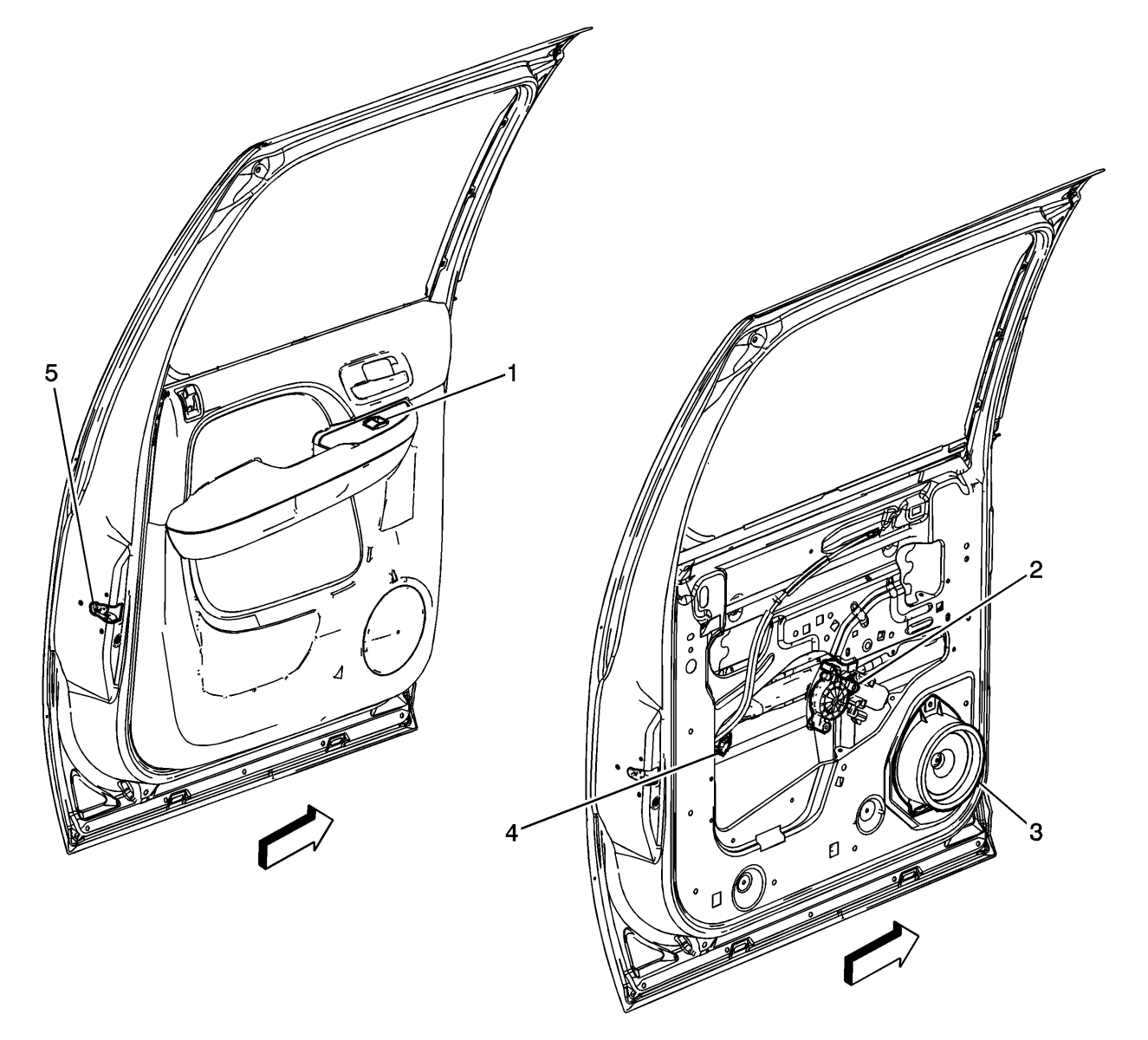

Fig 1: Left Rear Door Components

Courtesy of GENERAL MOTORS CORP.
