Headliner Components (SWB with E52 or TB7)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

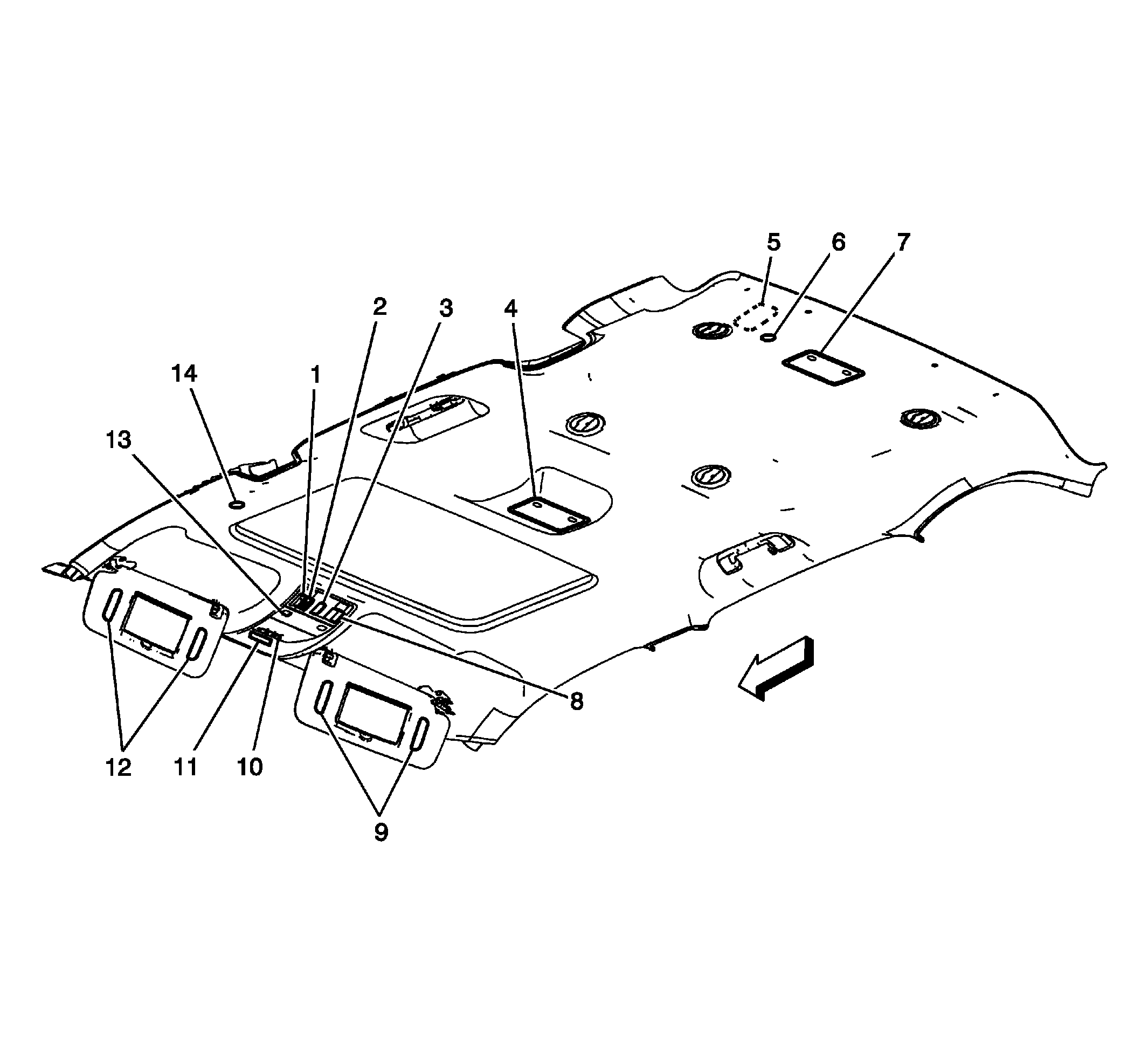

Headliner Components (SWB with E52 or TB7)
| Component Name | Callout |
|---|---|
| Sunroof Switch (CF5) | 1 |
| Cellular Telephone Microphone (UE1) | 2 |
| Liftgate Control Switch - Interior (E61) | 3 |
| Courtesy/Reading Lamps - 2nd Row | 4 |
| Electronic Compass Module (YE9) | 5 |
| Inside Air Temperature Sensor - Auxiliary (CJ2 with C69) | 6 |
| Courtesy/Reading Lamps - 3rd Row | 7 |
| Folding Seat Switch - Front (ARS) | 8 |
| Sunshade - Right | 9 |
| Garage Door Opener (GDO) (UG1) | 10 |
| Inflatable Restraint Passenger Air Bag On/Off Indicator | 11 |
| Sunshade - Left | 12 |
| Dome/Reading Lamps | 13 |
| Inside Air Temperature Sensor (CJ2) | 14 |
