Driver Seat Components (1 of 2)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

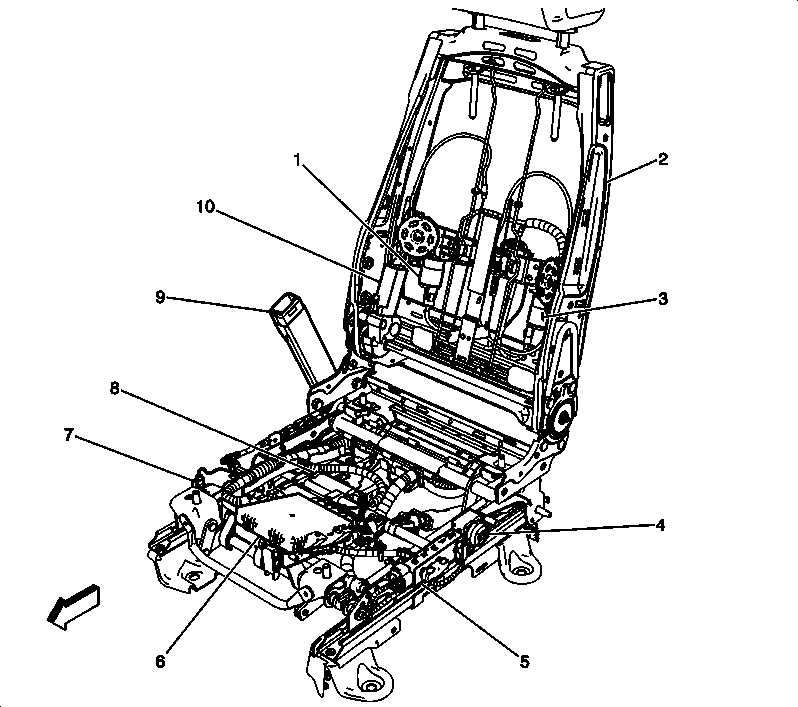

Driver Seat Components (1 of 2)
| Component Name | Callout |
|---|---|
| Seat Lumbar Vertical Motor - Driver (AN3) | 1 |
| Inflatable Restraint Side Impact Module - Left Front | 2 |
| Seat Lumbar Horizontal Motor - Driver (AN3) | 3 |
| Seat Lumbar Switch - Driver (AN3) | 4 |
| Seat Adjuster Switch - Driver | 5 |
| Memory Seat Module (MSM) (AN3) | 6 |
| Inflatable Restraint Seat Position Sensor - Driver | 7 |
| Seat Adjuster Motor Assembly - Driver | 8 |
| Seat Belt Buckle - Driver/Seat Belt Switch - Driver | 9 |
| Seat Recline Motor - Driver (AN3) | 10 |
