Wheel Speed Sensors

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Wheel Speed Sensors

Component Name Callout
Wheel Speed Sensor (WSS) - Right Front 1
Wheel Speed Sensor (WSS) - Right Rear 2
Wheel Speed Sensor (WSS) - Left Rear 3
Wheel Speed Sensor (WSS) - Left Front 4

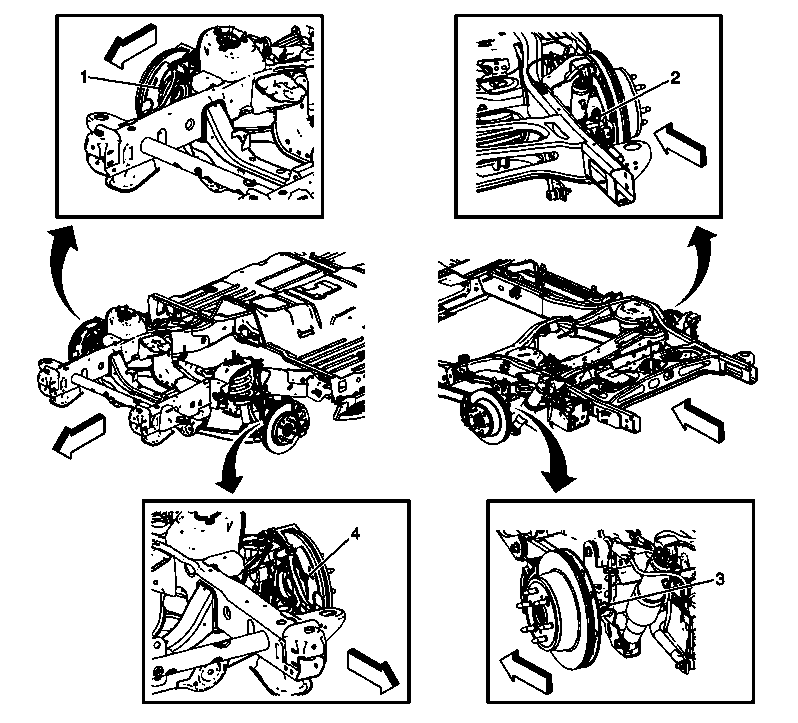

Fig 1: Wheel Speed Sensors (WSS)
GM2049124Courtesy of GENERAL MOTORS CORP.
