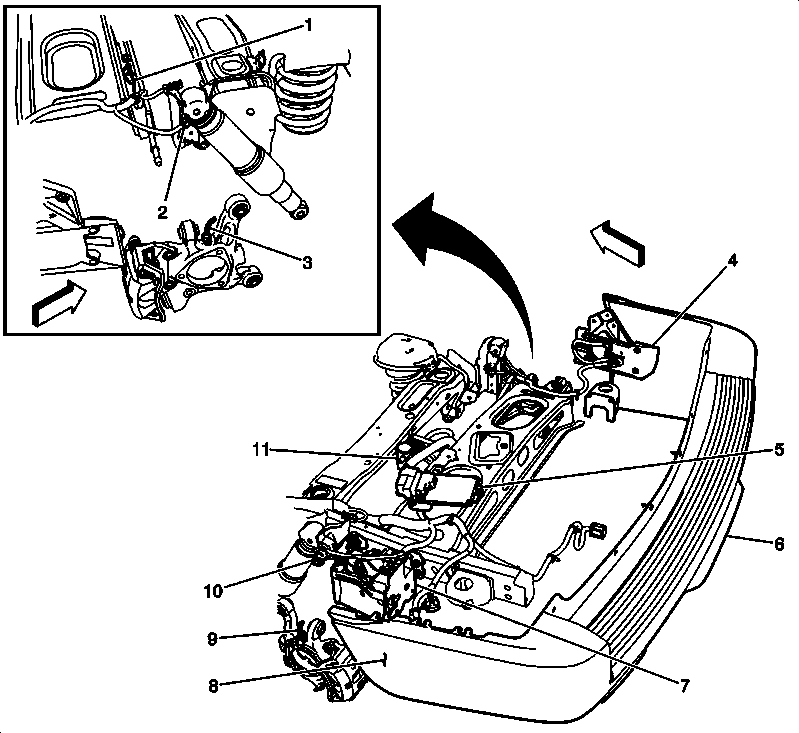

Rear Underbody Components
| Component Name | Callout |
|---|---|
| Data Link Resistor 1 (HP2) | 1 |
| Shock Absorber Actuator- Right Rear (Z55) | 2 |
| Wheel Speed Sensor (WSS)- Right Rear | 3 |
| Side Object Sensor- Right (UFT) | 4 |
| Electronic Suspension Control (ESC) Module | 5 |
| Trailer Connector | 6 |
| Automatic Level Control (ALC) Compressor (G69) | 7 |
| Side Object Sensor- Left (UFT) | 8 |
| Wheel Speed Sensor (WSS)- Left Rear | 9 |
| Shock Absorber Actuator- Left Rear (Z55) | 10 |
| Evaporative Emissions (EVAP) Canister Vent Solenoid Valve | 11 |
