Rear Underbody Components (except HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Rear Underbody Components (except HP2)

Component Name Callout
Data Link Resistor 1 1
Rear Frame - Short Wheelbase 2
Rear Frame - Long Wheelbase 3
Data Link Resistor 1 4
Data Link Resistor 1 5
Rear Frame - Long Wheelbase HD 6

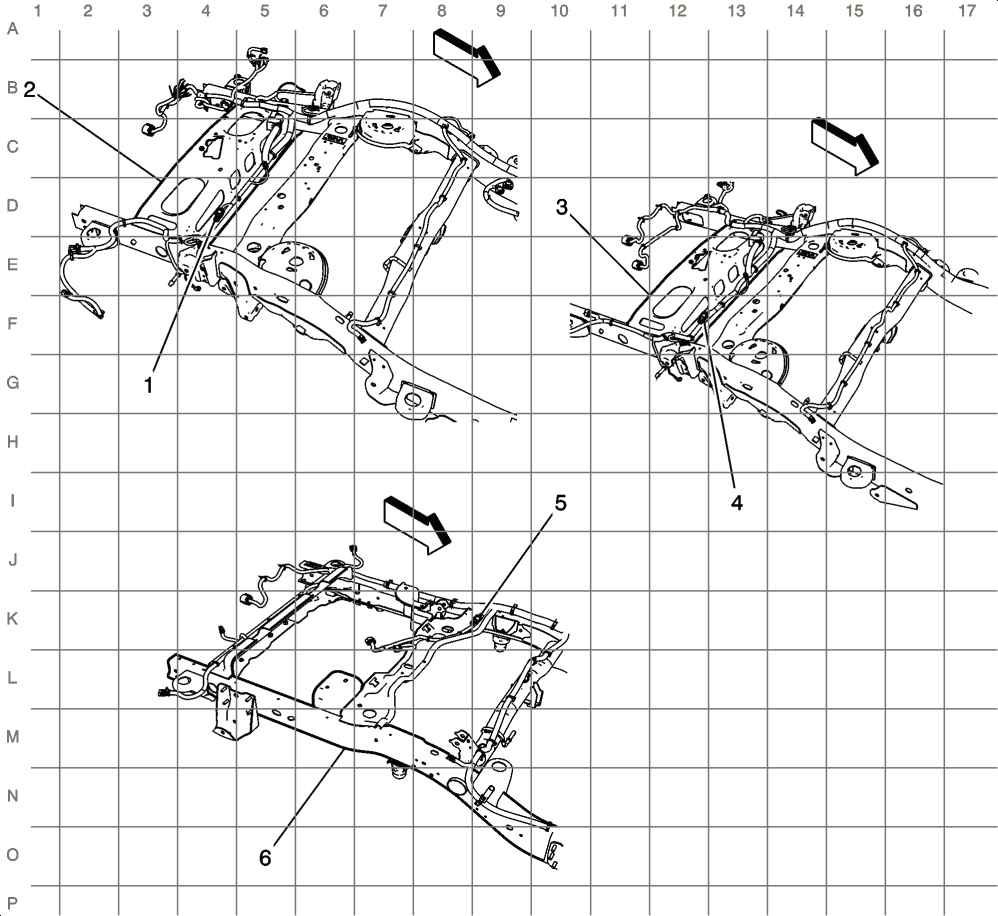

Fig 1: Rear Underbody Components (except HP2)
GM2113928Courtesy of GENERAL MOTORS CORP.
