Front Underbody Components (2 of 2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Front Underbody Components (2 of 2)

Component Name Callout
Running Board- Left (BRS) 1
Running Board- Right (BRS) 2
Assist Step Control Module (BRS) 3
Electronic Brake Control Module (EBCM) 4

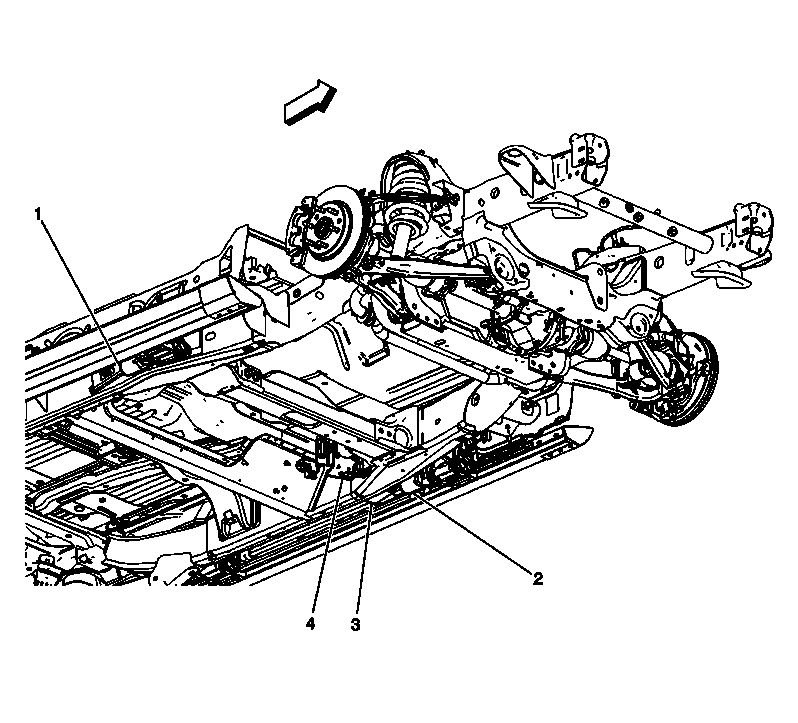

Fig 1: Front Underbody Components (2 Of 2)
GM2049215Courtesy of GENERAL MOTORS CORP.
