Hydraulic Brake Component Views
WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

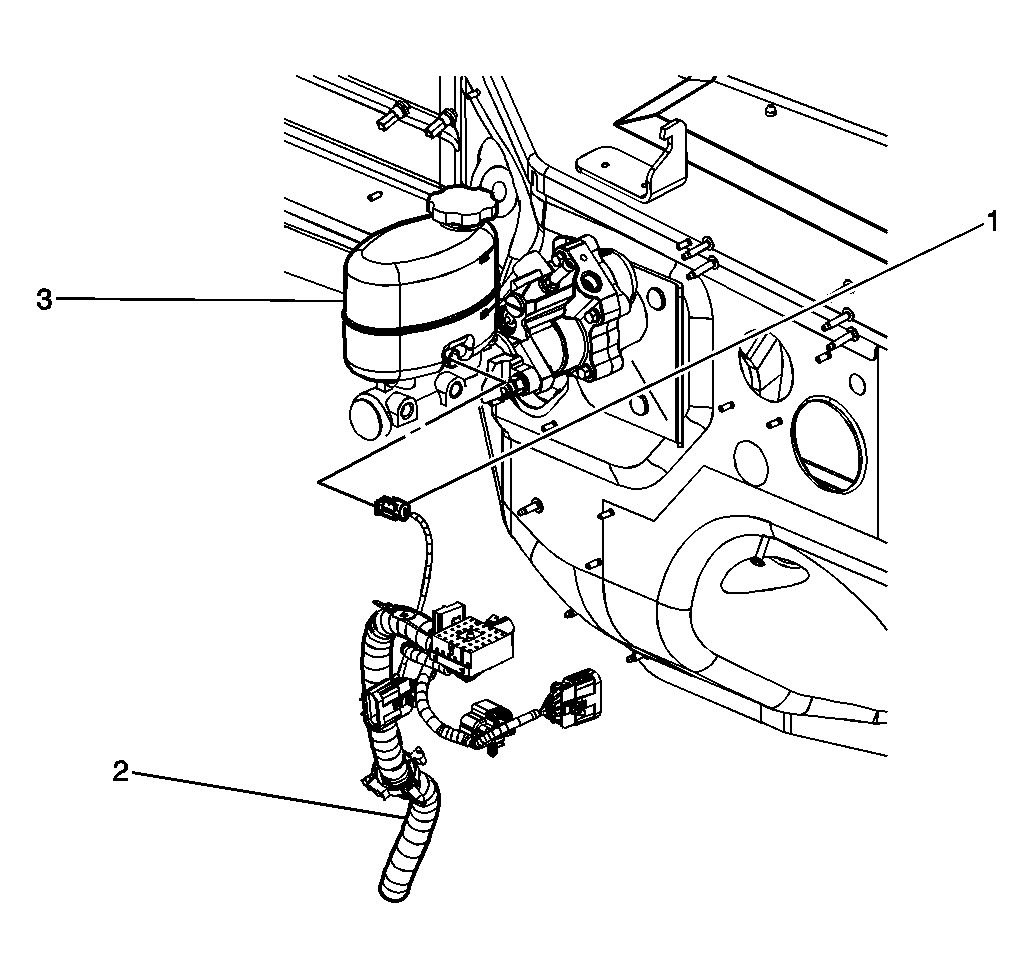

| Callout |
Component Name |
| 1 |
Brake Fluid Level Switch Connector |
| 2 |
Chassis Harness |
| 3 |
Master Cylinder |
Courtesy of GENERAL MOTORS CORP.

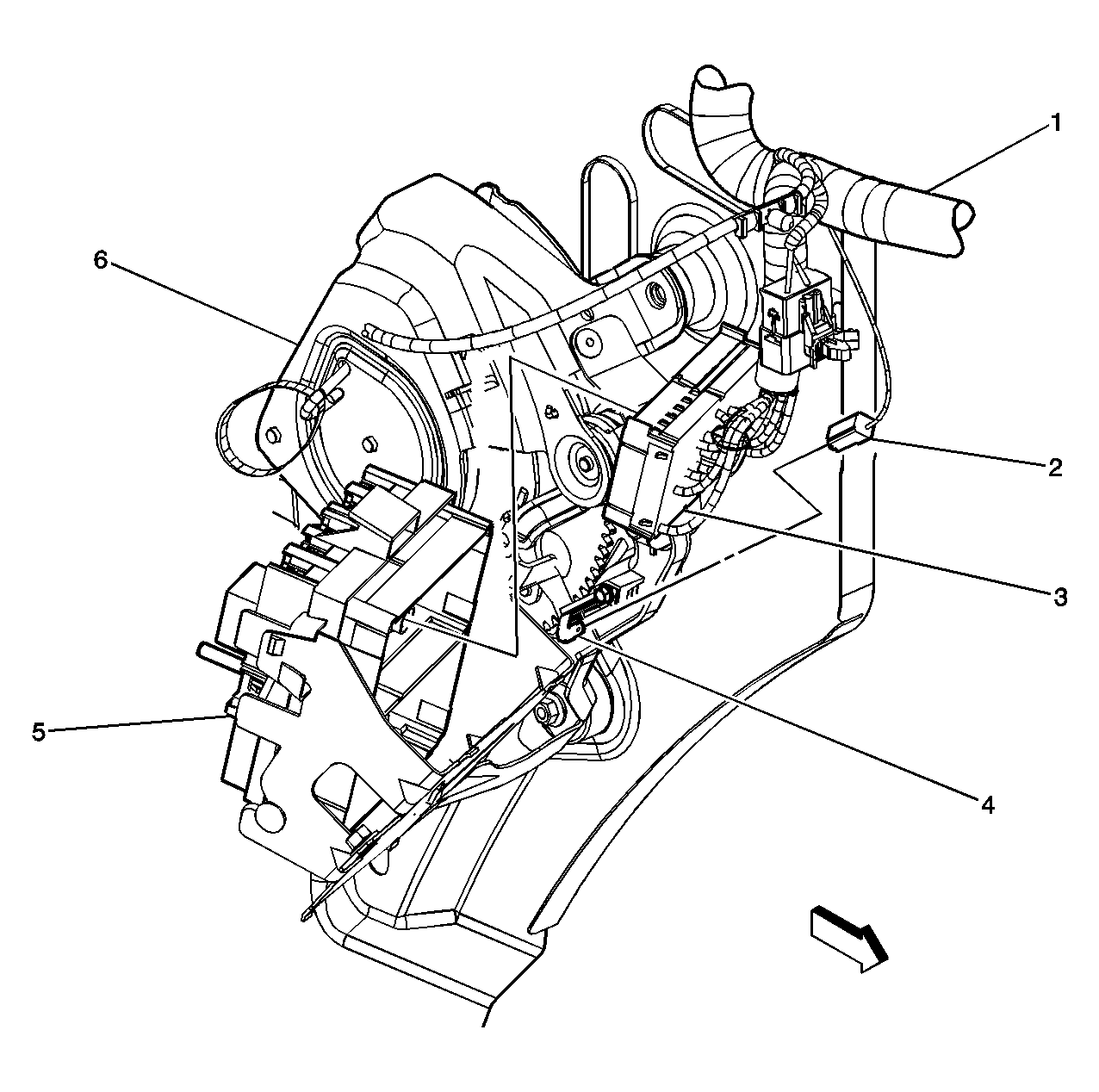

| Callout |
Component Name |
| 1 |
I/P Harness |
| 2 |
Park Brake Switch Connector |
| 3 |
Relay Block - Body - C1 |
| 4 |
Tab |
| 5 |
Relay Block - Body |
| 6 |
Parking Brake Assembly |
