Rear of Vehicle Components (Z75 without E52)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

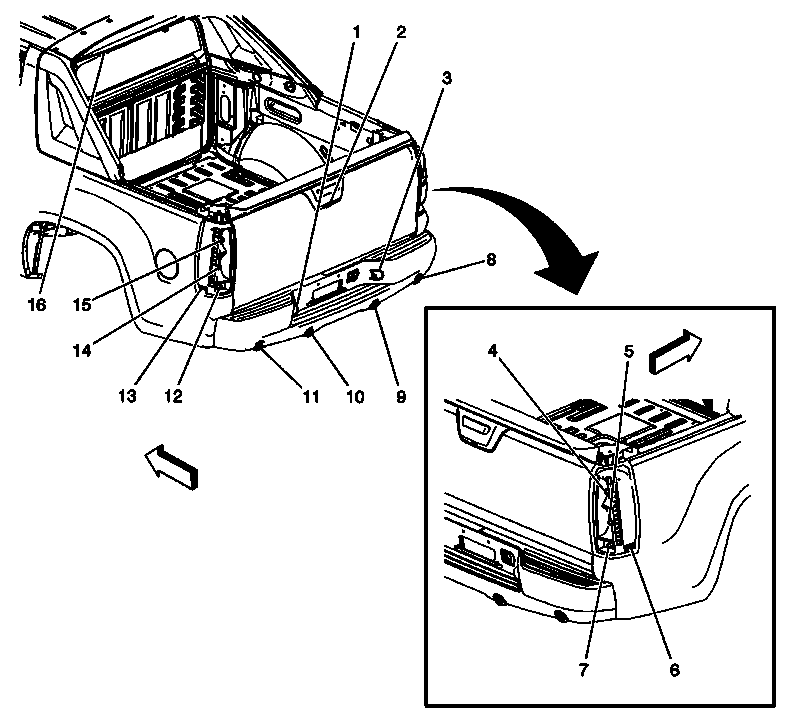

Rear of Vehicle Components (Z75 without E52)
| Component Name | Callout |
|---|---|
| License Lamp - Left | 1 |
| Rearview Camera (UVC) | 2 |
| License Lamp - Right | 3 |
| Tail/Stop and Turn Signal Lamp - Upper Right | 4 |
| Tail/Stop and Turn Signal Lamp - Lower Right | 5 |
| Side Marker Lamp - Right Rear | 6 |
| Backup Lamp - Right | 7 |
| Object Alarm Sensor - Right Rear Corner (UD7) | 8 |
| Object Alarm Sensor - Right Rear Middle (UD7) | 9 |
| Object Alarm Sensor - Left Rear Middle (UD7) | 10 |
| Object Alarm Sensor - Left Rear Corner (UD7) | 11 |
| Backup Lamp - Left | 12 |
| Side Marker Lamp - Left Rear | 13 |
| Tail/Stop and Turn Signal Lamp - Lower Left | 14 |
| Tail/Stop and Turn Signal Lamp - Upper Left | 15 |
| Center High Mounted Stop Lamp (CHMSL) | 16 |
