Rear of Vehicle Components (Z75 with E52)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

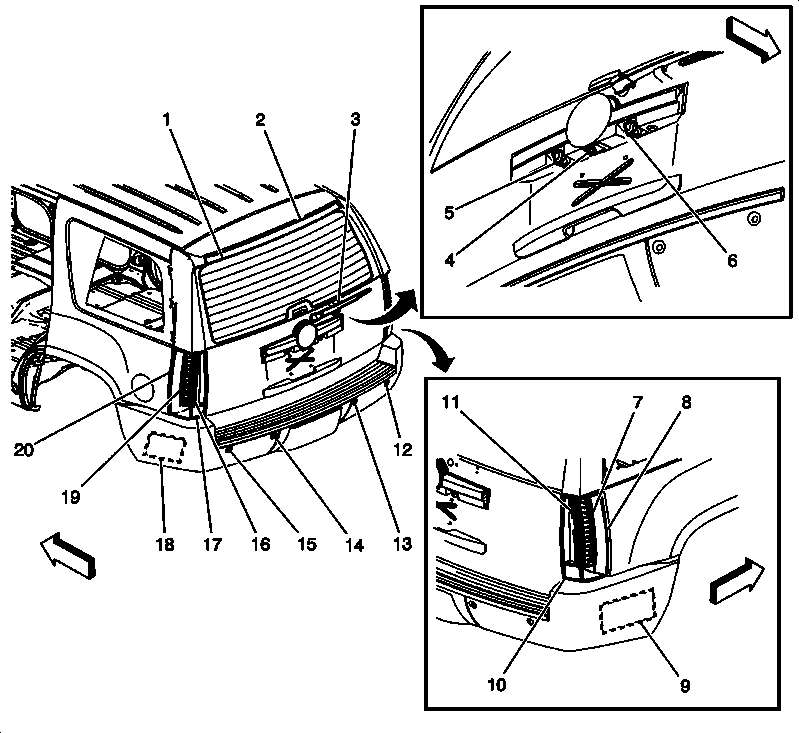

Rear of Vehicle Components (Z75 with E52)
| Component Name | Callout |
|---|---|
| Rear Window Defogger Grid | 1 |
| Center High Mounted Stop Lamp (CHMSL) | 2 |
| Rear Window Wiper | 3 |
| Rearview Camera (UVC) | 4 |
| License Lamp- Left | 5 |
| License Lamp- Right | 6 |
| Tail Lamp Circuit Board- Right | 7 |
| Side Marker Lamp- Right Rear | 8 |
| Side Object Sensor- Right (UFT) | 9 |
| Backup Lamp- Right | 10 |
| Tail Lamp Circuit Board- Right | 11 |
| Object Alarm Sensor- Right Rear Corner (UD7) | 12 |
| Object Alarm Sensor- Right Rear Middle (UD7) | 13 |
| Object Alarm Sensor- Left Rear Middle (UD7) | 14 |
| Object Alarm Sensor- Left Rear Corner (UD7) | 15 |
| Tail Lamp Circuit Board- Left | 16 |
| Backup Lamp- Left | 17 |
| Side Object Sensor- Left (UFT) | 18 |
| Tail Lamp Circuit Board- Left | 19 |
| Side Marker Lamp- Left Rear | 20 |
