Rear Cargo Area Components (without E52 or TB7)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Rear Cargo Area Components (without E52 or TB7)

Component Name Callout
Cargo Bed Lamp 1
Remote Control Door Lock Receiver (RCDLR) (AP3 or AP8) 2

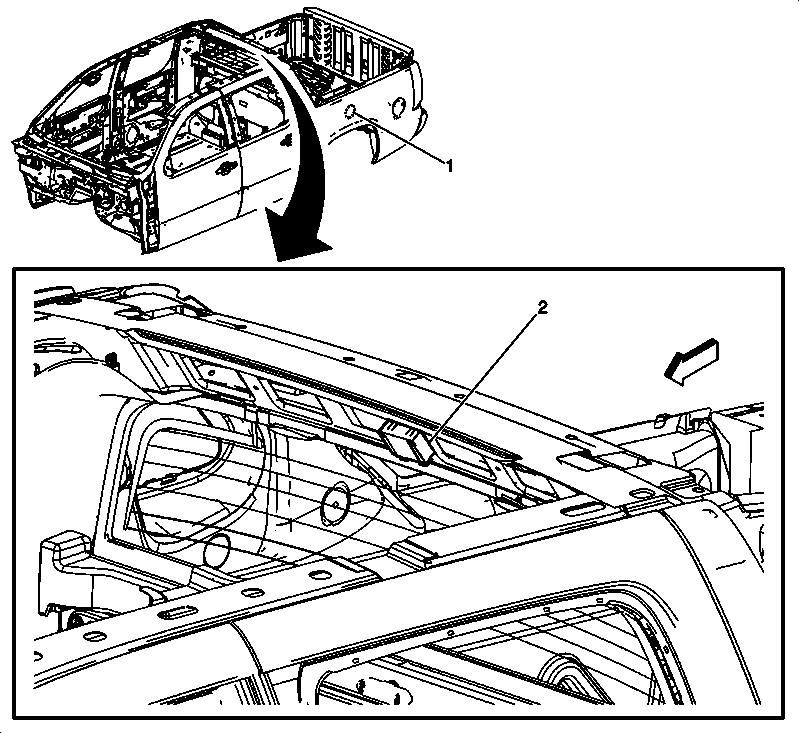

Fig 1: Rear Cargo Area Components (Wthout E52 Or TB7)
GM2500349Courtesy of GENERAL MOTORS CORP.
