Left Rear Cargo Area Components (HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Left Rear Cargo Area Components (HP2)

Component Name Callout
Accessory AC/DC Power Control Module (HP2) 1
Accessory Power Outlet- 110V AC (HP2) 2

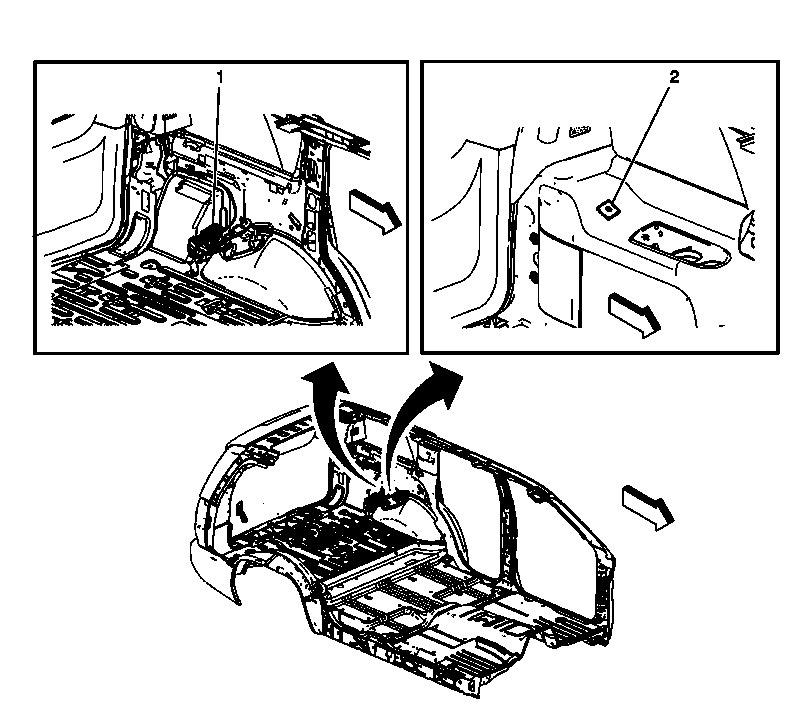

Fig 1: Left Rear Cargo Area (HP2)
GM2062326Courtesy of GENERAL MOTORS CORP.
