Auxiliary HVAC Components (LWB with C69)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Component Name	Callout
Mode Actuator - Auxiliary	1
Air Temperature Sensor - Upper Auxiliary (CJ2)	2
Air Temperature Actuator - Auxiliary	3
Blower Motor - Auxiliary	4
Blower Motor Control Module - Auxiliary	5
Air Temperature Sensor - Lower Auxiliary	6

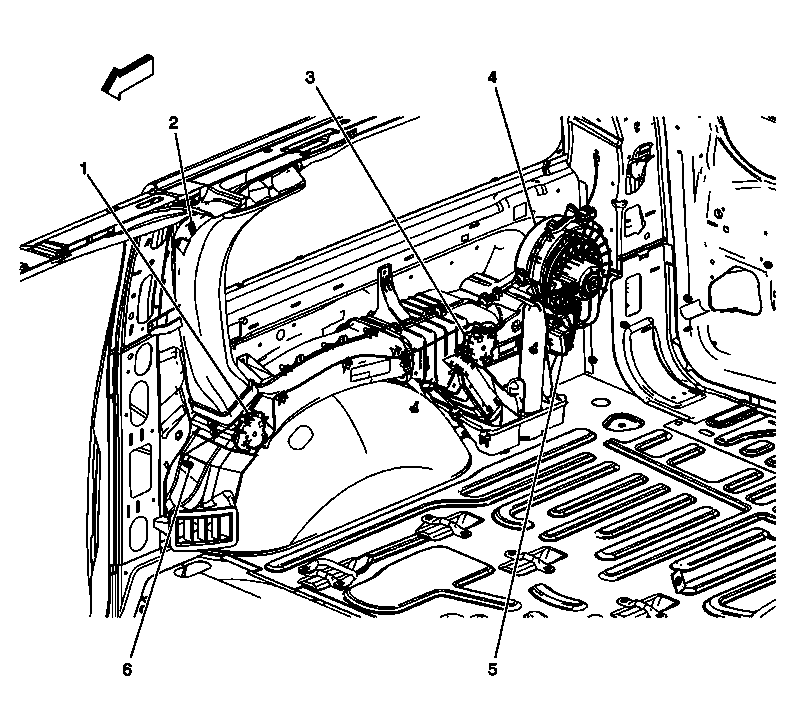

Fig 1: Auxiliary HVAC Components (Long Wheel Base With C69)

Courtesy of GENERAL MOTORS CORP.
