Transmission Fluid Pump Seal Replacement

WARNING: This page is about a different car, the 2011 GMC Yukon, 2011 Chevrolet Tahoe, and 2011 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

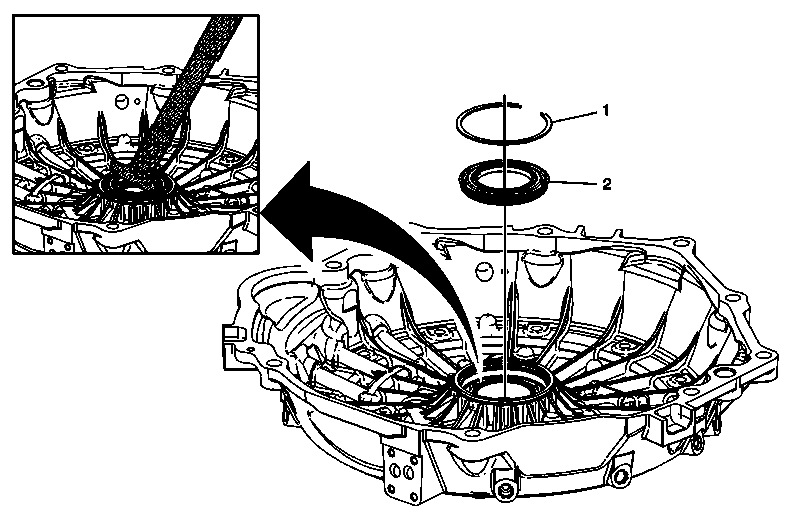

Fig 1: Transmission Fluid Pump Seal

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/Trans Torque Dampener Fluid Seal Retaining Ring
2	A/Trans Fluid Pump Seal Special Tool J 45000 Seal Remover
